Home > Products > Magnet Wire > Rectangular Wire
Rectangular Wire
- QINGDAO
- Money Gram
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | amity oem | |
| Model Number | iec60317-28/29 | Type | Insulated | |
| Application | Other, winding wire for motors | Conductor Material | Aluminum | |
| Conductor Type | Solid | Insulation Material | Enameled |
Product Description
Specifications
rectangular flat wire for motors1.thermal index: 130---220c
2.standard: IEC60317-28/29
3.thickness: 0.8-5.6, width:2.0-16
BRIEF INTRODUCTION 2 OUR COMPANY
Henan Amity Industry Co.,Ltd was established in 1996, with an area of 58980 square meters in Zhengzhou city, integrating R&D, production and sales of power cable and wires. We have 600 staff members, including 80 advanced engineers, 98 technicians with different speciality and more than 300 skilled workers. Henan Amity Industry is a specialized enterprise producing all kinds of power cables, wires and cable accessories. Our main products include:AAC, AAAC& ACSR, Aerial bundle cables up to 11kv, PVC insulated wire and flexible wire, Control cable, Enameled wire, PVC insulated power cable, XLPE insulated power cable up to 220kv, Galvanized steel wire, Rubber insulated cable, Mining cable, Fire retardant cable, Flame retardant cable, Connecting wire of electric motor, Underground cable for arming, and Lighting cable.
Thermal index: B 130, F 155, H 180, H+ 200, C 220
We supply thickness: 0.8-5.6mm, width: 2.0-16mm rectangular aluminum winding wire ,class 130,180&200 with high output and good price.
Name | Enameled Aluminum flat Wire | |||
Model | Q(Z/Y)LB-2/180 | |||
Diameter | 2mm*6mm | |||
Standard | MW36-A | |||
Test Item | Unit | Technical Requirement | Test Result | |
Appearance |
| bright and clean, Uniform color, | Ok | |
Bare Conductor | a | mm | ±0.03 | 2.01 |
b | mm | ±1% | 6.03 | |
Thickness of insulation film | a | mm | 0.102-0.152 | 0.115 |
b | mm | 0.127-0.178 | 0.160 | |
resistance | Ω/m | ≤0.02785 | 0.02776 | |
Elongation |
| >15% | 21% | |
Flexibility and adhesion |
| 15% No cracking | no cracking | |
Resistance to heat shock | C | 200C insulation film no cracking | Tensing 10% half an hour, no cracking | |
Resistance to solvent |
| Standard solvent “H” Pencil | 2H is ok | |
Breakdown Voltage | KV | 2.5 KV | 4.8,4.9,4.6,4.2 | |

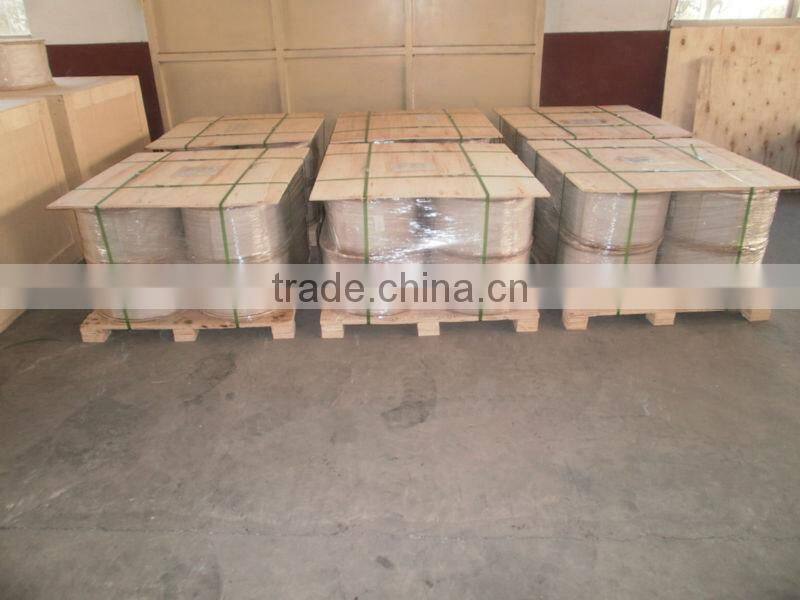

package |
| Meet the export standards | Ok | |
Quality Control Result |
| Ok | ||
MORE DETAILS SHOWED BY PICTURES
WELCOME 2 CONTACT US!
Contact Us
- Henan Amity Industry Co., Ltd.
- Contact nameAnna Zhang Chat Now
- Phone86-371-67679671
- AddressNo. 6, Cuizhu Street, High and New Technology Industrial Development Zone, Zhengzhou, Henan
