Cold Chamber Aluminium Pressure Die Casting Machine With Siemens Controller
Negotiable
1 (Min.Order)
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Horizontal Cold Chamber Die Casting Equipment With Hydraulic System
-
Semiautomatic Cold Chamber Zinc Die Casting Machine With Robot Socket
-
ServoEnergy Saving Cold Chamber Die Casting Machine With Casting Force 180 KN
-
Magnesium Pressure Cold Chamber Die Casting Machinery With Vickers Pump
-
90g 28mm Plastic 8 Cavity PET Preform Mould , Plastic Bottle Preform
-
Durable Home Appliance Mould 1 Cavity PE Chiar 718H Steel , ISO Approved
Product Details
| Brand Name | HAICHEN | Place of Origin | China | |
| Model Number | HCGC800 |
Product Description
Certification:ISO9001:2000, CE

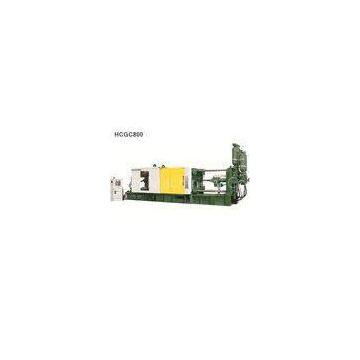

HCGC800 Cold Chamber Die Casting Machine With Siemens Controller
HCGC800 die casting machine—frequency translation & servo drive saving-energy system technology. Treasure energy resource that is the common seeking target of today\'s?globalization, we developed the machine of frequency conversion servo?energy-saving system.
Competitive advantages:
CA&MA SERIES COLD CHAMBER DIE CASTING MACHINE-FREQUENCY TRANSLATION DRIVE EFFICIENCY ENERGY SAVING SPECIAL NOTICE>35%?
Specification:
| HCGC800 COLD CHAMBER DIE CASTING MACHINE | ||||
| ITEM | UNIT | PARAMETER | ||
| Clamping Force | KN | 8000 | ||
| Clamping Stroke | mm | 760 | ||
| Die-thickness(Min.Max) | mm | 400-950 | ||
| Platen size(H*V) | mm | 1400*1400 | ||
| Space between Tie-bais | mm | 910*910 | ||
| Diameter of Bars | mm | 180 | ||
| Casting Force? | KN | 253-622 | ||
| Casting Stroke? | mm | 760 | ||
| Injection? Plunger Diameter | mm | 80 | 90 | 100 |
| Max.Casting? Volume | Kg | 6.7 | 8.4 | 10.4 |
| Casting Pressure (Min.Max) | Mpa | 50.3-123.7 | 39.8-97.7 | 32.2-79 |
| Cast? projection Area | cm2 | 646-2484 | ||
| Injection Position? | mm | 0,140,-280 | ||
| Ejector Space? | mm | 290 | ||
| Extruding Flange Diameter | mm | 180 | ||
| Heigh of Extruding Flange Pattern | mm | 20 | ||
| Ejection Force? | KN | 320 | ||
| Ejection Stroke | mm | 180 | ||
| System Working Pressure | Mpa | 14 | ||
| Motor Power | KW | 37 | ||
| Tank Capacity | L | 1100 | ||
| Machine Weight? | Kg | 39000 | ||
| Overall Dimensions of Machine(L*W*H) | mm | 9960*2450*3330 |
Description:
The die injection system designed three-class injection, and has quipped an assistant quick tracking device. The PLC of control system is high quality import, running steadily and respond quick. The specification of die injection unit all can adjust by oneself for satisfaction requirement of die injection technology-specification. The machines are used for color metal products such as plumbum, zinc, copper, aluminum and magnesium.
