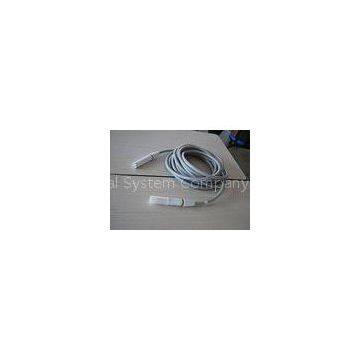

Industrial or Medical X-ray High Voltage Cables with connectors For CR/DR System, Generator

Industrial or Medical X-ray High Voltage Cables with connectors For?CR/DR System, Generator

Quick Detail:

Model NO.:WBX-Z50

Application: X-ray Equipment

Rated Voltage: 50KVDC

Description:

This product is composed by the high voltage cable, socket and main plug. It is available for x-ray equipment, electron microscope, Electronic analysis instrument and so on to transmit high voltage current.

Cable Configuration

Applications:

This 3-conductor, rubber insulated high voltage cable with connector’s typical applications are:

? Medical X-ray equipment like standard X-ray,

computer tomography and angiography equipment.

? Industrial and scientific X-ray or electron beam equipment

like electron microscopy and X-ray diffraction equipment.

? Low power high voltage test- and measuring equipment.

Specifications:

Operating characteristic:

Rated Voltage: 50KVDC.

Type and Basic dimensions:

Comply with the national safety standards: GB5579-85,which is equivalent to international standard IEC526(1978),comply with the national safety standards: GB10151-88.

Main Technical Specification:

1.??? Contact resistance: The Contact resistance of the socket and main plug should not be more than 0.001Ω.

2.??? Withstand voltage DC: The socket and main plug should pass the pulsating DC voltage test at 94KV (peak value) for 15min.

3.??? Withdrawal force: The withdrawal force of the socket and main plug should not be less than 30N but not more than 100N.

4.??? Reliability:

1)??? The useful time of the socket and main plug should not be less than 1000 times when they are not power on.

2)??? The 3 cores main plug and socket should not breakdown at 70KV 50HZ, 100℃ oil temperature, power on for 200h.

Competitive Advantage:

? Silver-plated spring contact pins or brass-plated spring contact pins for choice
