builder's hoist

SC-type construction is a lift by the gear, rack driveelevator, mainly for high-rise building construction people, goodstransportation, this lift can be very convenient installation and removal;andhigher as the building.
  SC-type construction of the lift hasa very reliable electrical and mechanical safety systems is the construction ofsafe and efficient transportation equipment.

The SC series of construction elevators, which are known fortheir stable performance, reliable safety, easy transportation and strongadaptability, can enhance work efficiency and reduce workers labor intensity.
Features:
Direct start-up and stop;
Simplicity and cost saving;
Installation, removal is very conenient.

Type specification

Rated load(kg): 2*2000

Rated erection load(kg): 2*1000

Jib attachment rated load(kg):300/600

Cage size(m):3.0*1.3*2.4 3.0*1.5*2.4

Lifting speed(m/min):33

Rated output(kw):2*3*11

Rated frequency(Hz):50/60

Rated current(A):2*2*33.2

Voltage rating(V):~380±5﹪

Power supply fuses(A):2*96

Protective class:IP55

The durative rate of electrifying:FC-25﹪

Safety device(m/s):1.2

Snclosure weight(kg):1480

Cage weight(kg):2*2000

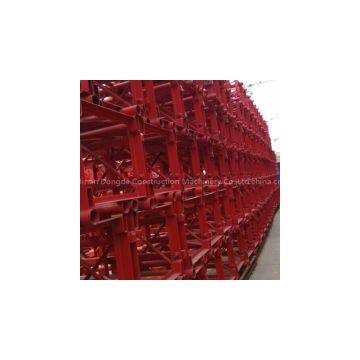

Mast section weight(kg):150/170/190/210

Mast section length(mm):1508
