professional high toughness Drill Pipe for oil drilling industry 2 3/8-6 5/8"
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
derrick Travelling block Drilling rig parts for ROTARY TABLES 2700-9000KN
-
gas drilling Travelling block Drilling rig parts for swivel Max. speed 300r/min
-
high performance drilling rig parts Travelling block draw works 210-1470KW
-
XJ350 XJ400 workover rig / Truck Mounted Rig on derrick , Max. 1000KN
-
professional Standard U-shaped blowout preventer in 18 series , 14-52Mpa
-
well control BOP-tools Annular blowout preventer with cone rubber core FH28-35
Product Details
| Brand Name | KOMAL | Place of Origin | China | |
| Model Number | E X G S |
Product Description
Certification:API

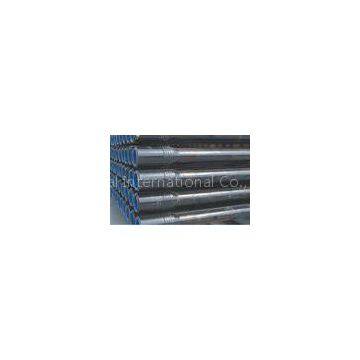

Drill Pipe for oil drilling industry 2 3/8-6 5/8\"
Description:
? Superior-quality green pipe&Advanced heat treatment process- High Strength&high toughness (especially under low temper!
?Smooth and long upset transition area & Strong hard banding- Extended Product Life
Ho meet or exceed requirements of the API 5D, API 7G, API Q1&IS09001
?? Equipped with advanced inspection instruments and a strictly enforced quality controlling system, the final products are guaranteed to
be of superior and stable quality.
? Due to our professional technicians&product flexibility, we are capable of meeting some customer\'s specific requirements.
Applications:
It’s the parts of drill rig,used for drilling,necessary tools for oildrilling.
Specifications :
| Size (inch) | Weight Designation (PPF) |
Calculated Plain-end Weight Wpe |
Outside Diameter D | Wall Thickness t | Grade | Upset Ends, for weld-on tool joints |
|||
| lb/ft | kg/m | in | mm | in | mm | ||||
| 2 3/8 | 6.65 | 6.27 | 9.33 | 2.375 | 60.3 | 0.280 | 7.11 | E X G S | E..U. |
| 2 7/8 | 10.40 | 9.72 | 14.47 | 2.875 | 73.0 | 0.362 | 9.19 | E X G S | E.U.orI.U. |
| 31/2 | 9.50 | 8.81 | 13.12 | 3.500 | 88.9 | 0.254 | 6.45 | E | E.U.orI.U. |
| 3 1/2 | 13.30 | 12.32 | 18.34 | 3.500 | 88.9 | 0.368 | 9.35 | E X G S | E.U.orI.U. |
| 3 1/2 | 15.50 | 14.64 | 21.79 | 3.500 | 88.9 | 0.449 | 11.40 | E | E.U.orI.U. |
| 3 1/2 | 15.50 | 14.64 | 21.79 | 3.500 | 88.9 | 0.449 | 11.40 | X G S | EU. or I.E.U. |
| 4 | 14.00 | 12.95 | 19.27 | 4.000 | 101.6 | 0.330 | 8.38 | E X G S | E.U.orI.U. |
| 4 1/2 | 13.75 | 12.25 | 18.23 | 4.500 | 114.3 | 0.271 | 6.88 | E | E.U.orI.U. |
| 4 1/2 | 16.60 | 15.00 | 22.32 | 4.500 | 114.3 | 0.337 | 8.56 | E X G S | E.U.orI.U. |
| 4 1/2 | 20.00 | 18.71 | 27.84 | 4.500 | 114.3 | 0.430 | 10.92 | E X G S | E.U.orI.U. |
| 5 | 16.25 | 14.88 | 22.16 | 5.000 | 127.0 | 0.296 | 7.52 | X G S | i.u. |
| 5 | 19.50 | 17.95 | 26.70 | 5.000 | 127.0 | 0.362 | 9.19 | E | I.E U |
| 5 | 19.50 | 17.95 | 26.70 | 5.000 | 127.0 | 0.362 | 9.19 | X G S | E.U.or I.U. |
| 5 | 25.60 | 24.05 | 35.80 | 5.000 | 127.0 | 0.500 | 12.70 | E | iu. |
| 5 | 25.60 | 24.05 | 35.80 | 5.000 | 127.0 | 0.500 | 12.70 | X G,S | E.U or I.U |
| 5 1/2 | 21.90 | 19.83 | 29.52 | 5.500 | 139.7 | 0.361 | 9.17 | E X G S | IEU. |
| 5 1/2 | 24.70 | 22.56 | 33.57 | 5.500 | 139.7 | 0.415 | 10.54 | E X G S | IEU. |
| 6 5/8 | 25.20 | 22.21 | 33.04 | 6.625 | 168.3 | 0.330 | 8.38 | E X G S | IEU. |
| 6 5/8 | 27.72 | 24.24 | 36.06 |
