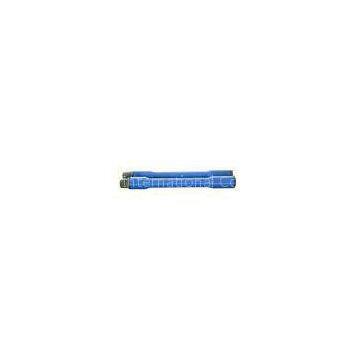

custom oil drilling high strength Short drill pipe / tube 79.4-279.4mm
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
professional high toughness Drill Pipe for oil drilling industry 2 3/8-6 5/8\"
-
derrick Travelling block Drilling rig parts for ROTARY TABLES 2700-9000KN
-
gas drilling Travelling block Drilling rig parts for swivel Max. speed 300r/min
-
high performance drilling rig parts Travelling block draw works 210-1470KW
-
XJ350 XJ400 workover rig / Truck Mounted Rig on derrick , Max. 1000KN
-
professional Standard U-shaped blowout preventer in 18 series , 14-52Mpa
Product Details
| Brand Name | KOMAL | Place of Origin | China | |
| Model Number | NC23-31 |
Product Description
Certification:API
Drill Pipe-Short drill pipes 79.4-279.4mm
Description:
Technical parameters meet with API Spec7-1 Standard Short drill pipe is a tool for adjusting interval
length of drilling tools to achieve some technical purpose in the drilling operation. According to the shape
of the shoulder, the structure includes sloping shoulder and straight shoulder.
Applications:
It’s the parts of drill rig,used for drilling,necessary tools for oil drilling.
Specifications :
| 1 | 2 | 3 | 4 | 5 | 6 |
| Model | OD | ID | Length | Chamfering diameter | BSR |
| mm | mm | m | mm | e | |
| ? | ? | ±152.4mm d | ±0.4 | ? | |
| NC23 -31 | 79.4 | 31.8 | 1-14.45 | 76.2 | 2.57:1 |
| NC26-35 | 88.9 | 38.1 | 1-14.45 | 82.9 | 2.42:1 |
| NC31 -41 | 104.8 | 50.8 | 1-14.45 | 100.4 | 2.43:1 |
| NC35-47 | 120.6 | 50.8 | 1-14.45 | 114.7 | 2.58:1 |
| NC38 -50 | 127.0 | 57.2 | 1-14.45 | 121.0 | 2.38:1 |
| NC44 -60 | 152.4 | 57.2 | 1-14.45 | 144.5 | 2.49:1 |
| NC44-60 | 152.4 | 71.4 | 1-14.45 | 144.5 | 2.84:1 |
| NC44-62 | 158.8 | 57.2 | 1-14.45 | 149.2 | 2.91:1 |
| NC46 -62 | 158.8 | 71.4 | 1-14.45 | 150.0 | 2.63:1 |
| NC46-65 | 165.1 | 57.2 | 1-14.45 | 154.8 | 2.76:1 |
| NC46-65 | 165.1 | 71.4 | 1-14.45 | 154.8 | 3.05:1 |
| NC46-67 | 171.4 | 57.2 | 1-14.45 | 159.5 | 3.18:1 |
| NC50-70 | 177.8 | 57.2 | 1-14.45 | 164.7 | 2.54:1 |
| NC50-70 | 177.8 | 71.4 | 1-14.45 | 164.7 | 2.73:1 |
| NC50-72 | 184.2 | 71.4 | 1-14.45 | 169.5 | 3.12:1 |
| NC56-77 | 196.8 | 71.4 | 1-14.45 | 185.3 | 2.70:1 |
| NC56 -80 | 203.2 | 71.4 | 1-14.45 | 190.1 | 3.02:1 |
| 6 5/8REG | 209.6 | 71.4 | 1-14.45 | 195.6 | 2.93:1 |
| NC61 -90 | 228.6 | 71.4 | 1-14.45 | 212.7 | 3.17:1 |
| 7 5/8REG | 241.3 | 76.2 | 1-14.45 | 223.8 | 2.81:1 |
| NC70-97 | 247.6 | 76.2 | 1-14.45 | 232.6 | 2.57:1 |
| NC70100 | 254.0 | 76.2 | 1-14.45 | 237.3 | 2.81:1 |
| 8 5/8REG | 279.4 | 76.2 | 1-14.45 | 266.7 | 2.84:1 |
Competitive advantages:
Competitive price with top quality,professional export service,provide all products as customer’s requirement,respond within shortest time
