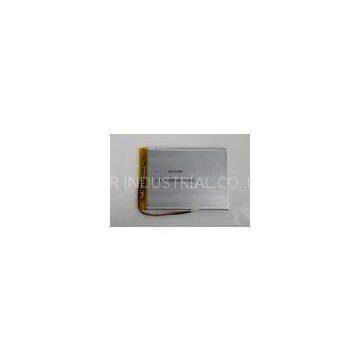

Rechargeable Lithium Polymer Battery 3.7V 3000mAh High energy density

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MAXPOWER		Place of Origin	China
Model Number	MP- 3070100 3000 mAh 3.7V

Product Description

Delivery Time:20-30 days
Certification:IEC62133,UN38.3,CE,ROHS,UL,REACH

Rechargeable Lithium Polymer Battery 3.7V 3000mAh High energy density

Feature:

Battery Type :polymer lithium-ion battery

Nominal Voltage 3.7V

Nominal Capacity 3000 mAh

Size :3.0mm(T)*70mm(w)100mm(h)

Model Number LP3070100
Specification:

No.	Item	Rated Performance	Remark
1	Rated Capacity	Minimum	3000mAh	Standard discharge(0.2C C5A) after Standard charge
2	Nominal Voltage	3.7V	Mean Operation Voltage During Standard Discharge After Standard Charge
3	Voltage at end of Discharge	3.0V	Discharge Cut-off Voltage
4	Charging Voltage	4.2±0.03V	?
5	AC (1KHz) Impedance New Cell Max.(mW)	≤80mΩ	?
6	Standard charge	Constant Current 0.5C5A Constant Voltage 4.2V 0.01 C5A cut-off	Charge time : Approx 4.0h
7	Standard discharge	Constant current 0.2 C5A end voltage 3.0 V	?
8	Fast charge	Constant Current 1C5A Constant Voltage 4.2V 0.01 C5A cut-off	Charge time : Approx 2.5h
9	Fast discharge	Constant current 1 C5A end voltage 3.0 V	?
10	Maximum Continuous Charge Current	1 C5A	?
11	Maximum Continuous Discharge Current	1.5 C5A	?
12	Operation Temperature Range	Charge: 0~45℃	60±25%R.H. Be Cell
Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃	60±25%R.H. at the shipment state
less than 3 months: -20~40℃
14	Weight	Approx :15g	Bare Cell
15	Cell Dimension	Length: Max.100 mm	Initial Dimension
Width: Max.70mm
Thickness: Max. 3.0 mm

Global localization satellite GPS, Bluetooth, portable type media products(Mp3, Mp4, DVD), notebook, tablet PC, the electronic toy, e-bike, model ship,

the power tool, camera, the multi-purpose PDA telephones.

Li-polymer rechargeable battery

Design and develop products according to customer\'s requirements and expectations

Safer

Higher energy density

Higher capacity

Small inner resistance

Thinner

Lighter

1. Light weight, high capacity, low inner resistance, good discharge performance.

2. High energy density, no memory effect, no pollution, has good plastic style.

3. Use polymer material, cell no explode, no burn, applied range is wide.

There are a variety of model, various capacity to choose from.
?

Model	Nominal Voltage (V)	Typical Cap.	Dimension(mm)
(mm)	Thickness	Width	Height
073496DHP	3.7	2100	7.8	34	96
LP0567100	3.7	3400	4.8	67	100
LP066166	3.7	2750	6.1	61	66
LP555376	3.7	2300	5.6	53	76
LP085065	3.7	2600	7.8	50	65
LP085080	3.7	3400	8	50	80
LP0845131	3.7	5100	7.5	45	131
LP0831134	3.7	4000	8.1	31	132
LP55100100	3.7	5600	5.5	100	100
LP605590	3.7	3400
