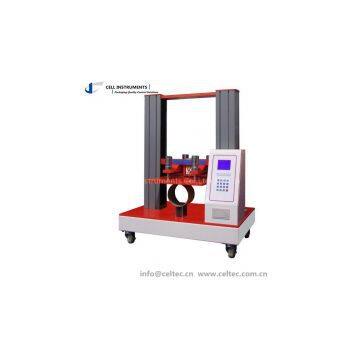

ISO 12048 Box Compression Tester
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | celtec | Place of Origin | China | |
| Model Number | CST-01 |
Product Description
Box Compression Tester is for the compression strength, crushing force and stacking ability of medium and small size packaging like corrugated carton.
Box Compression Tester Technical Feature
1.LCD display, PVC operation manual, human design
2.Microcomputer processing system, automatic measurement, test result intelligent judging, self-reture
3.Microcomputer data collecting and computing, microprinter
4.Real-time display of compression resistence force, deformation and changing curve
5.Three test modes of compression resistence, stacking and compression at fixed time and pressure
6.Synchronous motor
7.Accurate thread lead screw drive system
Technical Data
Pressure range: 0-10KN
Force resolution: 0.1N, Display error: ±2%
Display variation: ≤2%, Back to zero error: ±0.2%FS
Deformation measurement accuracy: ±1mm
Compressing speed adjustable range: 5mm/min~90mm/min
Compressing speed relative error: ±3%(within 5~90mm/min)
Standard compressing speed: 12mm/min
Stacking test speed: 5mm/min
Lower platen stroke: 800mm
Test space: 400mm(L)*600mm(W)*600mm(H)
Upper and lower platen parallelism degree: ≤1mm
Dimension: 850mm(L)*600mm(W)*1100mm(H)
Standards
ISO12048, TAPPI T804
