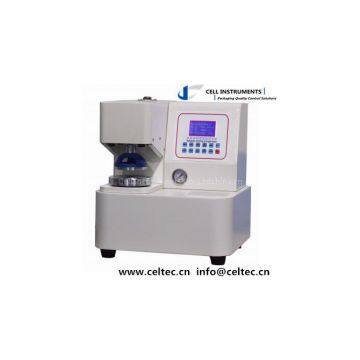

ISO2758 Paper Bursting Strength Tester
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | celtec | Place of Origin | China | |
| Model Number | ZNP-01 |
Product Description
ZNP-01 is designed for the bursting strength of paper, boards etc., whichis in accordance with ISO2758 Paper-Determination of bursting strength'
Principle
A test piece is placed over a circular elastic diaphragm which is rigidly clamped at the periphery but free to bulge with the diaphragm. Hydraulic fluid is pumped at a constant rate, and bulged the diaphram until the test piece rutures. The bursting strength of the test piece is the maxium value of the applied hydraulic pressure.
Materials: paper, foils, corrugated, textiles
Technical features
? LCD display and PVC operation panel
? Automatic test process, automatic bursting judgment
? Microcomputer real time data collection and data memory
? Micro printing
? Synchronous motor drive for stable and precise pressure output
Parameter (For paper)
Measuring Range: 20~1600kpa
Accuracy: + / - 0.5% or less(≤±0.5%)
Resolution: 0.01 kpa
Deformation Error: 1 mm or less
Plates Concentricity: 0.25 mm or less(≤0.25mm)
Diaphragm resistance : bulge height (9±0.2)mm/（30±5)kPa
Transmit hydraulic volume: 95±5ml/min
Pressure Plate Diameter: upper:30.5±0.1mm, lower: 33.1±0.1mm
Display: 3.5 in. 320*240 Lattice LCD with curve display
Clamping Force: 400kpa~1200kpa (adjustable)
Unit Conversion: Kg/cm2, kpa, LBF/in2
Weight: 50KG
Standard
ISO2758, GB454, GB/T457, GB1539
