Product Details
| Place of Origin | China |
Product Description

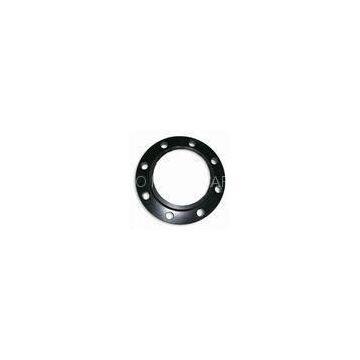

1 / 2\" - 48\" SS304 SS316 A105 Welding Slip on flanges With ANSI B16.5 , Class 150 - 2500
SS304 , SS316 , A105 Slip On Weld Flange With ANSI B16.5 , Class 150 - 2500
Description:
Slip on weld flanges are slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. Slip-on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These SO flanges can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.
ANSI flange(American National Standards Institute) include ANSI B 16.5, ANSI B 16.47 series A SP44, Series B, this standard system include slip on flange, blind flange, welded neck flange, threaded flange, lapped joint flange(loose flange), socket welded flange, Orifice Flanges, long weld neck flange and special flange.
| Standard | Type | Size | Nominal Pressure class(lb) | Facing | Material |
| ANSI B16.5 | Slip-on,Welding Neck,Blind,Socket Weld, Threaded, Lap Joint | 1/2\"-48\" | 150-2500 | RF; FF;RTJ | A105; A105N; SS304/304L, SS316/316L |
| ANSI B16.47 Series A( or MSS SP44) | Welding Neck, Blind | 26\"-60\" | 150-900 | RF; FF;RTJ | A105; A105N; SS304/304L, SS316/316L |
| ANSI B16.47 Series B( or API605) | Welding Neck, Blind | 26\"-60\" | 75-900 | RF; FF;RTJ | A105; A105N; SS304/304L, SS316/316L |
Specifications:
Type: ? ? ??Slip on weld flange
Material: A105; A105N; SS304/304L, SS316/316L
Standard: ANSI B16.5
Pressure: CLASS150-2500
Size: ? ? ? ? 1/2\"-48\"
Coating: ? Black,yellow paint, rust-proof oil.
Applications:
Machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems and devices
Competitive Advantage: meet various customer’s demand
