Home > Products > Triplex Plunger Pump > Triplex Plunger Pump,triplex Piston Pump(WP3-S)

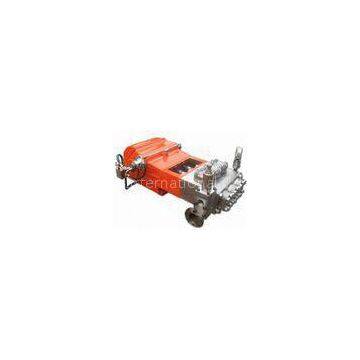

Triplex Plunger Pump,triplex Piston Pump(WP3-S)
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Surface-Set Diamond Core Drill Bits PCD For For Hard Rock / Core Drill Machine
-
Drill Rig Parts Block In Derrick , Travelling Block For Drilling Rig
-
Water Tank, Fuel Tank, Mud Tank, Oil Tank, Diesel Tank, Storage Tank
-
Double Safty Design 1000L 2000L Stainless Steel or Iron Diesel Fuel Storage Tank
-
Triplex Plunger Pump,triplex Piston Pump(WP2D-S)
-
Triplex Plunger Pump,triplex Piston Pump(WP3Q-S)
Product Details
| Brand Name | NEFOR | Place of Origin | China | |
| Model Number | NEFOR |
Product Description
Certification:CE
KAMAT technology triplex plunger pump,triplex piston pump, KAMAT K20000 type, maximum pressure of triplex plunger pump: 570bar, maximum flow rate: 480L/Min, pump weight: 1000kg, used for descaling at steel plant, water injection at oil field, bigger pipe cleaning, etc.
Speed of motor | 1480 r/min | Stroke | 120 mm |
|||||||
Gear ratio | 4.04 | Gear ratio | 4.619 |
|||||||
Speed of pump | 366 r/min | Speed of pump | 320 r/min |
|||||||
Power (kw) | 110 | 132 | 160 | 200 | Plunger diameter | 110 | 132 | 160 | 200 | Power(kw) |
Flow rate | Pressure(MPa) | Pressure(M Pa) | Flow rate |
|||||||
195 L/Min | 28 | 33 | 40 | 45 | 45 mm | 31 | 38 | 46 | 57 | 173 L/Min |
| 240 L/Min | 22 | 27 | 33 | 36 | 50 mm | 25 | 31 | 37 | 46 | 213 L/Min |
295 L/Min | 19 | 22 | 27 | 30 | 55 mm | 21 | 25 | 30 | 38 | 258 L/Min |
350 L/Min | 16 | 19 | 23 | 25 | 60 mm | 18 | 21 | 26 | 32 | 307 L/Min |
415 L/Min | 13 | 16 | 19 | 21 | 65 mm | 15 | 18 | 22 | 27 | 361 L/Min |
480 L/Min | 10 | 13 | 17 | 19 | 70 mm | 13 | 15 | 19 | 24 | 418 L/Min |
