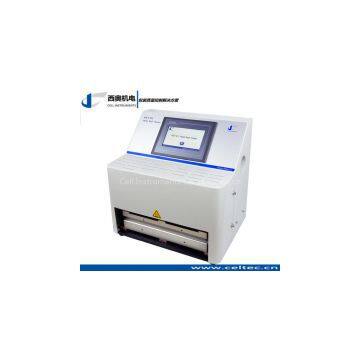

Plastic film Heat Seal Tester Heat sealer ASTM F1921 ASTM F2029

Plastic film Heat Seal Tester is for the determinationof the heatsealability of a surface,or sealant layer of films, laminates, composites and polymers etc. How well thematerial heatseals is expressedquantitatively as seal strength as a function of the sealing conditions oftemperature, time and pressure.

Plastic film Heat Seal Tester is professionally designed for the precise measurement of thethree parameters of temperature, time and pressure in the heat seal process. HeatsealabilityTester conforms to standards of ASTMF2029, QB/T 2358 and YBB 00122003.

Plastic film Heat Seal Tester features

1.    7 inch TFT touching screen makes parametersetting and operation easy and convenient for Heat Seal Tester.

2.    PLC for precise dwell time and sealingpressure control

3.    P.I.D. for precise sealing temperaturecontrol

4.    Uniform heating by aluminum encapsulatedsealing jaws and no inhomogeneous heating

5.    Multiple groups of test parameters can besaved to reduce setting time and eliminate human error

6.    Independent heating of upper and lowersealing jaws on the model of Heat Seal Tester.

7.    Sealing jaw customization available in termof dimension, shape and surface

Technicalspecifications

Sealingtemperature      Room Temperature ~ 300℃

Deviation                ±0.2℃

Dwelltime               0.1 s~infinite

Sealingpressure               0.15 MPa ~ 0.7 MPa

SealingJaws                   330mm×10mm(Sealing Surface)(CustomizationAvailable)

Double Heating of Upper andLower Jaws

GasPressure            0.7 MPa of Air

Dimensions             455mm (L) *320mm (W) *440mm (H)

PortSize                   Ф6 mm PU Hose

Power                   AC 220V 50Hz

Standard

ASTMF2029, QB/T 2358, YBB 00122003
