H Beam Welding Line Plate Roller Straightening H Beam Steel Machine
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Hydraulically Type Plate Straightening Machine Of H Beam Welding Line
-
Automatic H Beam Steel Gantry Type H Beam Welding Line Machine
-
Heavy-duty Steel Gantry Type Submergedarc Welding Machine of H Beam Welding Line
-
H Beam Steel Gantry Type Submergedarc H Beam Welding Line
-
Custom Power Trowel With Height Adjustable Handle With Over-built Gearbox Diesel WH170F
-
Concrete Honda GX160 Power Trowel Machine Of High Efficiency Electric Power Trowel
Product Details
| Brand Name | Yijie | Place of Origin | China | |
| Model Number | H beam |
Product Description
Certification:CE

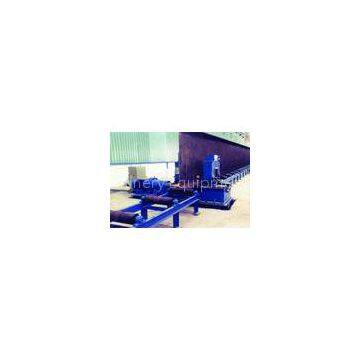

H Beam Welding Line Plate Roller Straightening H Beam Steel Machine
H Beam Plate Roller Straightening Welding Line Machine
Welding shaped H-steel (I-steel), as a result of thermal expansion and the role of its flange plate will inevitably produce distorted, Physics-40 aircraft will be used to correct its correction deformation of special equipment. The machine is simple, fast, and has high efficiency. The main machine assembled by frame, the main transmission device, pressure devices, Roller Conveyor, and electrical control system, etc. Rack uses welding structure and eliminates stress; it has compact structure and beautiful appearance. Main gear from the motor through the Cycloid reducer driven roller main transmission operation achieved. Reduction of electrical devices -- cycloid gear reducer -- silk mother movements -- movements Roller. Roller Conveyor machine installed in the correct input and output terminal. Its correction is a process through Roller main transmission and constitute a lever-style groove, when H-steel flange plate through the hole at the correct pressure roller pressure, the flanges produced distorted, through elastic deformation, will be able to resume attain the correct shape.
Availability of reference and composition of units
The mainframe with correction: base around the fuselage frame, motor, reducer, corrective round, pressure rollers, guide rollers, roller-oriented auxiliary pressure roller, etc.
Input and output roller containing : Roller input and output of the six-meter
Electronic control assembly including : electrical control box, the box and its annex operation
Adjuvant small correction roll, roll orientation, etc.
Spare Parts containing : a special wrench, two button switch
Technical papers
The use of brochures (including electrical schematics, Damageable map)
Shipments list
Unit certification
Unit Map
Product Application:
Automatic mode heavy duty H-beam build up line is widely used in various metal structure enterprises domestically.
Product Advantage:
high quality
Reasonable price
good service
Specification:
|
The flange width
|
200-800mm
|
|
The flange thickness
|
6-40mm
|
|
Web minimum height
|
350mm? (When the plate height 160-300mm, Winglets thickness ≤14mm, use correction vice Roller)
|
|
Correction Speed
|
≈ 18000mm
|
|
?Switchboard power
|
24.2KW
|
|
Workpiece Material:
|
Q235-A (16Mn winglets thickness at 70%)
|
