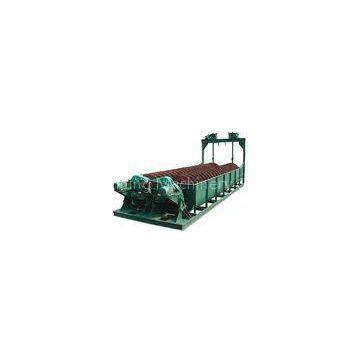

New design ore dewatering Spiral classifier with good quality
- T/T L/C D/P D/A
- 7 days
You May Like
-
Best selling Low Spiral classifier with superior qualtiy
-
China Professional manufacture screw mineral-washing machine
-
2012 Good Quality Energy Saving Circular Vibrating Motion Shaker Screens
-
2012 Good Quality China High Frequency Vibrating Screen
-
2012 Good Quality Fine Vibrating Screen
-
screw ore washer of cut your energy
Product Details
| Brand Name | NGOE | Place of Origin | China | |
| Model Number | NGOE |
Product Description
Certification:ISO9001/CE
New design ore dewatering Spiral classifier with good quality
1.Introduction
Screw mineral-washing machine is mainly applied to washing minerals of large slit content, such as iron, manganese, limestone, tin ore, etc. It carries out mixing, washing, separating, and desliming. With a washing pressure less than 147-196kpa, it is also suitable for washing building materials in construction and power station applications. The gear transmission parts of our screw mineral-washing machine are separated from stones, water and sands, which greatly reduces the error rate of our spiral washing machine.
2.Working Principle
Screw mineral-washing machine makes use of buoyancy of water to separate sand from dust and impurity. It achieves purifying, lifting and conveying of the minerals through the stirring of spiral slice. During lifting, the minerals are also stirred so that the coarse sands and fine sands are evenly mixed.
3.Features
Screw mineral-washing machine has features like long spiral structure, good sealing system, simple structure, strong processing capability, convenient maintenance, good washing efficiency, etc. It is widely used in mining industry.
4.Technical speicification
Type | Spiral Diameter(mm) | Output(t) | Motor Power(kw) | Weight(kg) |
FG-60 | 600 | 20 | 3 | 2550 |
FG-75 | 750 | 50 | 5.5 | 3820 |
FG-100 | 1000 | 75 | 7.5 | 4870 |
FG-120 | 1200 | 95 | 11. | 6900 |
FG-150 | 1500 | 130 | 18.5 | 8800 |
