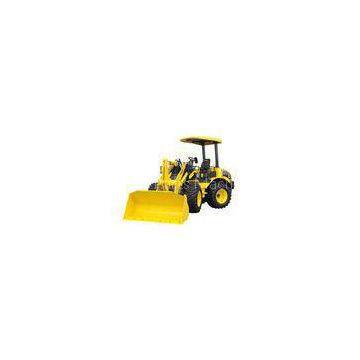

LW500KL / 3 m Diesel Compact Wheel Loader With 3090mm Dumping Height
- T/T L/C D/P D/A
- 7 days
You May Like
-
Yellow 3 Cubic Meters Compact Wheel Loader , 18 Ton Mini Wheel Loader 3m
-
XE40 4050kg Hydraulic Crawler Excavator 0.14m , Construction Excavator
-
Bucket Diesel 0.34m Hydraulic Crawler Excavator XE80 for Construction
-
Yellow XE15 Hydraulic Crawler Excavator 0.044m for Construction
-
Diesel 0.34m Hydraulic Crawler Excavator XCMG XE80 for Construction , Yellow
-
Custom XE15 Hydraulic Crawler Excavator 0.044m for Construction Yellow
Product Details
| Brand Name | WJJGD | Place of Origin | China | |
| Model Number | LW500KL |
Product Description
Certification:ISO
LW500KL / 3 m3 Diesel Compact Wheel Loader with 3090mm Dumping Height?
International Market:Ethiopia/Africa/Uganda/Chad/Zambia/Tanzania/Liberia/Myanmar
/Cambodia/Thailand/Malaysia
roadmachine@road-machine.com
Quick detail:
Condition: Brand New????
Fuel Type:Diesel????????
Made year : 2013?????????
Place of Origin:Shandong, China (Mainland)
Description:
1.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.
2.The large rock bucket with capacity of 3.0m3 is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of tooth holder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.
3.The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.
Specifications:
|
Item |
LW500KLParameter |
Unit |
|
|
Rated load |
5000 |
kg |
|
|
Tipping load |
110 |
kN |
|
|
Bucket capacity |
3.0 |
m |
|
|
Dumping height |
3090 |
mm |
|
|
Dumping distance |
1130 |
mm |
|
|
Lifting height |
5262 |
mm |
|
|
Bucket width |
3000 |
mm |
|
|
Max.drawing force |
170 |
kN |
|
|
Max. traction |
175 |
kN |
|
|
Articulation angle |
±38 |
° |
|
|
Dimension (Length × Width × Height ) |
8185×3000×3465 |
mm |
|
|
Operating weight |
17.4 |
t |
|
|
Boom lifting time |
≤6 |
s |
|
|
Total time of three devices |
≤11 |
s |
|
|
Wheelbase |
3300 |
mm |
|
|
Tread |
2250 |
mm |
|
|
Min. turning radius(tyre center) |
5925 |
mm |
|
|
Min. turning radius (bucket outside) |
6910 |
mm |
|
|
Rated power/rotary speed |
162/2200 |
kW/r/min |
|
|
Engine model |
WD10G220E23 |
||
|
Gradability |
30 |
° |
|
|
Speed |
IGear (Forward/Backward) |
11/13 |
km/h |
|
II Gear (Forward) |
36 |
km/h |
|
|
Tyre specification |
23.5-25-16PR |
