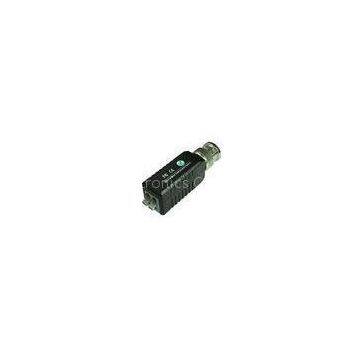

CCTV Cat5 Passive Video Balun

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Chinasky		Place of Origin	China
Model Number	VB102E

Product Description

Delivery Time:5-12 working days
Certification:CE, RoHS

1. Channel:1 CH

2. Impedance:

Coax, Male BNC: 75?ohms

RJ45/Terminal Block: 100?ohms

3. Transmission Distance: 330m

4. Compatible: NTSC,?PAL,?and?SECAM

5. Frequency Response: DC?to?5MHz

6. Certification: CE, RoHS

Description:

The screwless video balun VB102E is a passive transmission device that transmits video signal over unshielded twisted pair wires, point-to-point, for distances up to 1000 feet (330 m). It uses Category 5 UTP. It’s easy to install and cost effective, and does not require power.

The extremely compact size allows the VB102E to fit anywhere that a BNC can fit. It is ideal for mounting directly on virtually all high-density DVRs without any additional cabling. Its crosstalk and noise immunity ensure quality video signals.

Features:

Full-motion?CCTV?video?at?distances?up?to?330m?When?used?with?any?passive?transceiver Up?to?1500m?with?any?active?UTP?video?receiver Outstanding interference rejection, transient protection High quality image \"Press-Fit\" terminal block. Screwless terminal block design, easy to use, without screwdriver It can work as video transmitter or video receiver Compact?size?and?easy?installation

Technical specifications:

Video Format	NTSC,?PAL,?and?SECAM?
Frequency Response	DC?to?5MHz
Attenuation	0.5dB?typ
CMRR	60?dB?
Impedance	Coax, Male BNC	75?ohms?
Terminal Block	100?ohms
Working environment	Working?Temperature	-10℃?to?+50℃
?Storage?Temperature	-30℃?to?+70℃
Humidity?	0?to?95%
Wire Type	UTP5
UTP Connection	\"Press-Fit\" terminal?blocks
Power	No power required
Case	ABS Plastic
Dimension	39mm16mm19mm(excluding?connectors)
Weight?	58g/pair
