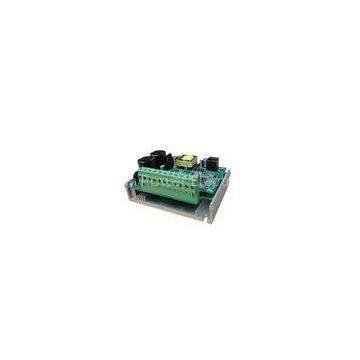

HDOM IO Logic IO Terminal Board Inverter Accessories With Three Digital Input Terminals
- T/T L/C D/P D/A
- 7 days
You May Like
-
Profibus DP V0 Protocol Inverter Accessories For HD700 Drives
-
IP20 24V DC LCD Keypad Inverter Accessories RS-485 Protocol Signal
-
Ultra Low Conduction Loss IGBT Inverter Module for SMPS
-
Molding 650V / 600A IGBT Inverter Module 8s Short Circuit Capability
-
IEC62040-1-1 High Frequency Online UPS Large-Screen LCD 1K
-
PFC High Frequency Online UPS Large-Screen LCD 6K
Product Details
Brand Name | ADA | Place of Origin | China | |
Model Number | HDOM-IO-Logic |
Product Description
Certification:UL,CE
HDOM IO Logic IO Terminal Board Inverter Accessories With Three Digital Input Terminals
Quick Detail:
IO terminal function
user customization function
suitable for HD700 drives
the User software version is V2.03 and above
? Description:IO terminal function: HDOM-IO-Logic has three digital input terminals, an analogue input terminal, two relay output terminals, a digital output terminal, an analogue output terminal and two encoder input terminals. All these terminals can be programmed by the user. HDOM-IO-Logic can provide DC 5V/24V or 10V power supply.
User customization function: HDIAC can develop exclusive application solutions and built in HDOM-IO-Logic for the user. The user can make the HD700 drive as a special drive with customized HDOM-IO-Logic, so as to effectively reduce the user’s cost.
Specifications:
Type |
Terminal name |
Technical specifications |
---|
Digital input terminals
X1, X2, X3
The common is 0V, input resistance:10K
High, low logic threshold: 10V
Sampling period: 400ms/1ms
Digital output terminal
DO
Output voltage: 24V
Maximum output current: 50mA
Updating rate: 400ms/20ms
Relay output terminals
TA, TB
Contact rating:
250VAC/2A (cosφ=1)
250VAC/1A (cosφ=0.4)
30VDC/1A
Normally closed
Updating rate: 400ms/5ms
Analogue input/output terminal
AI
0~10V, input resistance: 100K
0(4)mA~20mA, load resistance: 188Ω
Resolution: 0.1%, Accuracy: 2%
Sampling period: 400ms/5ms
AO
0~10V, maximum output current: 10mA
Resolution:0.4%, Accuracy: ±5%
0~20mA/20~0mA/4~20mA/20~4mA,
Accuracy: 1%, Updating rate: 400ms/5ms
Power supply reference
0V
-
10V
Accuracy: 2%, Maximum output current: 10mA
+P
The common can be 5V or 24V by setting the
P09.31 (the default is 5V).
Maximum output current: 100mA
Encoder input terminal
EA, EB
Support 5V/24V voltage mode or open collector signal, only for Quadrature Encoder.
