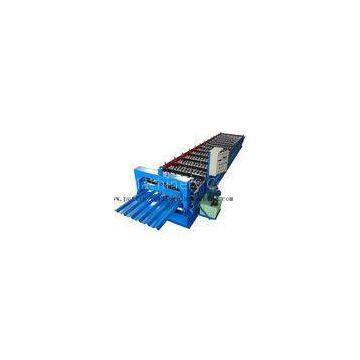

Professional Steel Metal Sheet Cold Roll Forming Machine , Roof Panel Roll Former 5 Ton

Professional Steel Metal Sheet Cold Roll Forming Machine , Roof Panel Roll Former 5 Ton

Quick details:

1. Condition: New, Type: Roof Forming Machine

2. Brand Name: LUOLE, Certification: ISO9001 and CE, Warranty: 12 months

3. Tile Type: Steel, Use: Roof, Place of Origin: Wuxi

Description

Trapezoidal roof/wall panel are widely used in roof or wall panel. We are skilled in producing these model forming machine. We have advanced designing, producing and installing team.

Roof/ wall panel forming machine can produce beautiful appearance and strong trapezoidal panels which are widely used in plant,house,storage and simple steel roof & wall construction.

Specifications

1. Thickness of coil sheet:0.4-0.8mm
2. Main motor power:5.5kw
3. Forming speed:16m/min
4. Hydraulic station power:3kw
5. Quantity of stands: about 18 groups
6. Hydraulic pressure:10-12Mpa
7. Controlling system: PLC
8. Index error of length:10m-2mm
9. Total weight: about 5200kg

Decoiler–feeding guide–roll forming machine–Hydraulic cutting–Output table

Application

The ridge caps made by our Steel Roof Ridge Cap Cold Roll Forming Machine are beautiful and bright. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Advantages

1. Rain water flow fast on the roof

2.Big strength

3. No any bolt or nail on the roof panel which can avoid leakage and increase life.

4. Our Concealed fixing roof panel roll forming machine can meet most customer’s requirements which is reliable and low cost!

5.The whole line of Concealed fixing roof panel roll forming machine is composed by automatic decoiler or manual decoiler for coils from 5ton to 10ton, roll forming machine include the guide and feeding device, cutting blade drived by hydraulic power and auto stacker or manual stacker for finished products.

6.The production line can be automaticly running by inputting the length and batches into the PLC control system.
