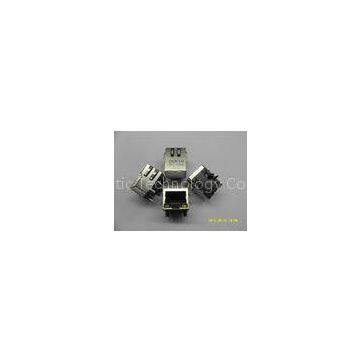

WIFI PCB RJ45 Modular Jack with magnetics , LEDs and EMI Fingers OEM Degree

P/N:KRJ-109NL

Descriptions:

10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with LEDS Single port 1X1 Tab-Down RJ45 with internal magnetics ???????????? Internal magnetics are 100% electrically tested for HI-POT and functionality Suitable for CAT5&6 fast Ethernet Cable or better UTP 350uHminimum OCL with 8mA bias current High performance for maximum EMI suppression Minimum 1500Vrms isolation per IEEE 802.3 requirement ?ROHS-6 peak wave solder temperature rating 260℃ Operating temperarure range :0℃ to +70℃ Storage temperature range :-40℃ to +85℃ Number of positions:8 Number of contacts loaded:8 Shieded:YES Rohs compliant Length:21.3mm LEDS:YES EMI fingers:YES LEFT LED:Green,RIGHT LED:Yellow Usage:KRJ-109NL

Mechanical Dimensions:(Unit:mm)

. XX Tolerance:0.25

.XXX Tolerance:0.13?

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

??????????? 30-60MHZ -14.0dBmin

??????????? 60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

???????? 30-60MHZ -35.0dBmin

???????? 60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH? @100KHZ 100Mv 8mA? DC

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0) Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl Housing:Phenolic, PBT Black (UL94V-0) Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

??Integrated?RJ45?connector?main?used?to?:

??10/100M?net?card,PCMCIA?net?card,USB?Hub,network?switch,router,fiber?optic?transceivers,

optical?transceiver,IP?phone, internet?set-top?box,internet?camera,net?bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL?and?so?on.
