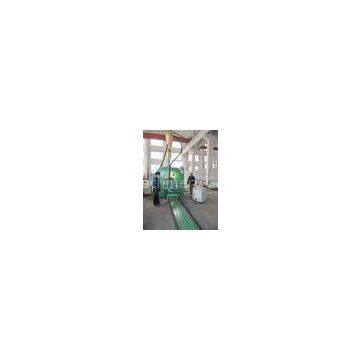

Seam Welder max 450mm diameter , 14000mm length Shut welding machine for light pole

Seam Welder Max?450mm Diameter 14000mm Lenth -?Shut Welding Machine?For Light Pole

Quick Detail:

Description:

APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 14000MM.

LIGHT POLE SHUT-WELDING MACHINE MODEL: 450/14000, it is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.

1. Long working table with rack for pull dolly.

2. Dolly for pulling pole.

3. Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal and circle pole).

4. Submerged Arc Welding and Gas-shielded welding (CO2) Welding system, including welding wire feeding system.

5. The flux recovering system.

6. Back support unit.

Specifications

14meter table + 7 meter’s back support also included

OPTION:( detail see attached photos)

Note:, If chose the Lincoln welding machine,normally it is suitable for Submerged Arc Welding process

Note:for the standard machine, the dolly return back can be motorized with working speed, it is very slow for return back process. So, normally, the operator will open the dolly clutch and push the dolly by manual.

In order to reduce the manpower, we have option: Fast motorized return back for dolly. The operator only push button, the dolly will be back to the welding head.

See attached detail photos.

It is suitable for small diameter big thickness light pole, or steel plate with high tensile strength light pole.

With this additional option, the diameter from 60~450mm, thickness 2.8~6mm, all pole can be suitable. And easy for operation.
