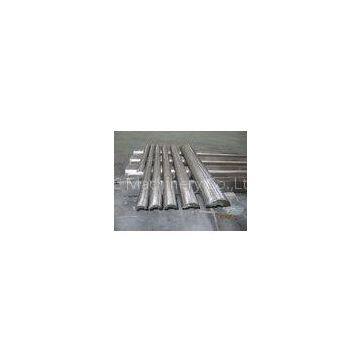

Press brake machine tooling / die for conical light pole OD 60mm

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	cmc		Place of Origin	China
Model Number	double rate tooling 11/1000&12.5/1000

Delivery Time:50-60 days
Certification:ISO

Round / Circle / Conical Light Pole Tooling For Press Brake Machine To Bend Circle Pole - Double Rate

Quick Detail:
?

Name	Other Name	Brand Name	CMC
Round/circle/conical light pole tooling for press brake machine to bend circle pole	? Light pole tooling Light pole punch Light pole die Press brake machine tooling Press brake machine punch Press brake machine die	Feature	In one set of tooling, it can have two taper rates: 11/1100 and 12.5/1000, full length 16 meters. in whole word, the 95% pole is 11/11000 rate, 5% is 12.5/1100
Capacity	To make min OD 60mm	Advantages	With this conical tooling, the light pole is very round

Application:

Making conical light pole on CNC press brake
?
?

Specifications

Conical light pole tool
For bottom tool,one side with taper rate 11/1000
?	tool length	16	m	?
?	taper rate:	11	/1000	?
?	small end OD:	60	mm	?
?	Big end OD:	236	mm	?
?	bascial thickness:	4	mm	?
It can do the following size CONICAL CIRCULAR light pole.
Light pole length,small end outer diameter,big end outer diameter table
small end OD (mm)	60	70	80	90	100	110	120	130	140	150	160	170	180	190	200	210
pole length (m)	Big end outer diameter table (mm)
2	82	92	102	112	122	132	142	152	162	172	182	192	202	212	222	232
3	93	103	113	123	133	143	153	163	173	183	193	203	213	223	233
4	104	114	124	134	144	154	164	174	184	194	204	214	224	234
5	115	125	135	145	155	165	175	185	195	205	215	225	235
6	126	136	146	156	166	176	186	196	206	216	226	236
7	137	147	157	167	177	187	197	207	217	227
8	148	158	168	178	188	198	208	218	228
9	159	169	179	189	199	209	219	229
10	170	180	190	200	210	220	230
11	181	191	201	211	221	2
