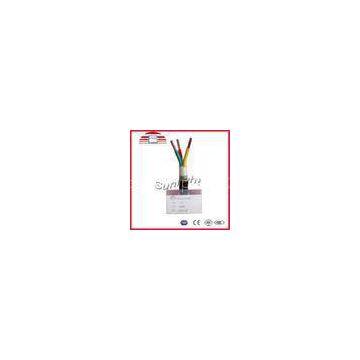

PVC Insulated Cable Four Conductor Cable 600 / 1000v Electricals Wires
- T/T L/C D/P D/A
- 7 days
You May Like
-
Construction 450 / 750V PVC Insulated Cables And House Wires Yellow 1mm 2mm 4mm
-
Bare Aluminium Conductor / ABC Cable Single Core For Transmission Line
-
Black PVC Sheathed 0.6 / 1KV Overhead AAAC Bare Aluminium Conductor Steel Reinforced Cable
-
Overhead erial Bounded Cable 0.6 / 1KV Bare Aluminium Conductor
-
Bare Aluminium Conductor / Overhead Aluminum Aerial Bounded Cable 75
-
Low Voltage Copper ACSR Bare Aluminum Conductor Single Core ASTM B-230
Product Details
| Brand Name | Sunlight | Place of Origin | China | |
| Model Number | VV3*50+1*25 |
Product Description
PVC Insulated Cable Four Conductor Cable 600 / 1000v ?Electricals Wires
? Specifications600/1000v 3*50+ 1*25 4 cores Low Voltage PVC-insulated and sheathed copper conductor electrical cables, wires
PVC-insulated Power Cables
The cable is used for the routine of power supply with the AC rated voltage not exceeding 3.6/6KV. The mechanical, physical and electric characteristics are referenced by GB/T12706-2008(the national standard of china) and IEC60502-1:2004,60502-2:2005(the international standard) The Sheathing Insulated Power Cables with the Rated Voltage 1kv to 35kv and Its Attachment
The sue characteristic and the index of electrical characteristics
1,the permissible installation temperature:≥0°C
2,the long-term permissible operation temperature of conductor:≤70°C
3,Under the condition of short circuit(the max. continuing time should not exceeding 5 seconds) the max. operation temperature:160°C
4, the permissible minimum bending radius:
?single core:20D?????? multicore: 20D
5, the AC voltage test of finished cables:
|
KV Rated voltage |
0.6/1 |
1.8/3 |
3.6/6 |
|
KV Test voltage |
3.5 |
6.5 |
12.5 |
|
min Continuing time(min.) |
5 |
5 |
5 |
6,The DCR of conductorcomply with the rules of GB/T3956-2008 The Conductor of Cables.
The type , name and suitable place of the cables
|
type |
name |
Suitable for |
|
|
Copper-conductor |
AL-conductor |
||
|
VV |
VLV |
PVC insulated and sheathed power cable |
Installation in such place as indoor, ? tunnel, pipeline, cable channel, and flammable and deep-corrosion areas; the mechanical ? force is unavailable. |
|
VY |
VLY |
PVC-insulated cable sheathed with ? polythene |
Installation in such place as indoor, ? tunnel, pipeline, cable channel, and flammable and deep-corrosion areas; the mechanical ? force is unavailable. |
|
VV22 |
VLV22 |
insulated and sheathed ? cable with copper tape |
Installation in such place as indoor, ? cable channel, underground and deep-corrosion areas; the lager tension is ? unavailable. |
|
VV23 |
VLV23 |
PVC insulated and sheathed cable with steel tape |
Installation in such place as indoor, ? cable channel, underground and deep-corrosion areas; the lager tension is ? unavailable. |
|
VV32 |
VLV32 |
PVC insulated and sheathed cable armored with thin steel wire |
Installation in such place as underground, ? vertical shaft, water and deep-corrosion areas; the lager tension is ? unavailable. |
|
VV33 |
VLV33 |
PVC--insulted and polythene—sheathed ? cables armored with thin steel wire |
Installation in such place as underground, ? vertical shaft, water and deep-corrosi |
