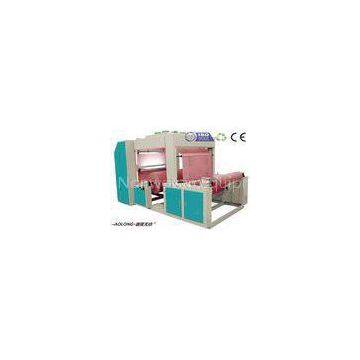

380V / 220V 2 Color Non Woven Flexo Printing Machine Width 1600mm
- 0 Square Meter / Square Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
high speed Bag to bag non woven bag printing machine 1500pcs~4500pcs/h
-
Automatic S PP Non Woven Fabric Making Machine Width 1600mm For Shopping Bag
-
New S PP Non Woven Fabric Manufacturing Machine 1600mm For Agricultural Cover
-
SS PP Spunbond Non Woven Fabric Making Machine with GSM 15~250g
-
High Speed SSS PP Spunbond machine / Equipment From 1.6m-3.2m
-
400KW SMS PP Non Woven Fabric Making Machine For Operation Suit 350m/Min
Product Details
| Brand Name | AL | Place of Origin | China | |
| Model Number | AL-P41200; AL-P41400; AL-P41600 |
Product Description
Certification:CE,ISO9001
380V / 220V 2 Color Non Woven Flexo Printing Machine Width 1600mm
Quick Details
1> Bag width : 1200mm , 1400mm?
2> Max printing width : 1160mm , 1360mm?
3> Power supply : 380V ; 220V
4> Speed : 10~50m/min
5> CE; ISO9001
Function
The printing machine uses the photopolymer plate,is suitable for the printing on the non-woven fabrics , PE polypropylene plastics , web etc.
Technical details
| Model | AL-P21200 | AL-P21400 | ? |
| Max material width | 1200 | 1400 | ? |
| Max printing width | 1160 | 1360 | ? |
| Max printing length | 191~914mm | ||
| Max diameter fabric | 1000mm | ||
| Printing speed | 10~50m/min | ||
| Plate thickness | 2.38~3.94mm | ||
| Total Power | 13.37kw | 15.5kw | ? |
| Weight | 700kg | 800kg | ? |
| Overall size(m) | 3.9x1.6x2.4m | 3.9x1.9x2.4m | ? |
Machinery Advantage
1. Flexo Printing Machine For Non Woven Bags The meter counter can set printing quantity according to the requirements .Stop the machine automatically at the quantity or when the material.
2. Pneumatic printing cylinder lift and lower ,it will stir the printing ink automatically after lifting.
3. The printing ink is spread by the anilox cylinder with even ink color.
4. Reliable drying system coordinated with high-speed rotation ,it will automatically break circuit when the machine stops.
360continuous and adjustable longitudinal register device.
5. The frequency control of motor speed adapts to different printing speeds. there are jogging /stopping buttons on the plate roller base and material rolling rack so as to make it easy operate.
