remote?control?broadcast camera systems with studio camera fiber adaptor and optic base station for live link

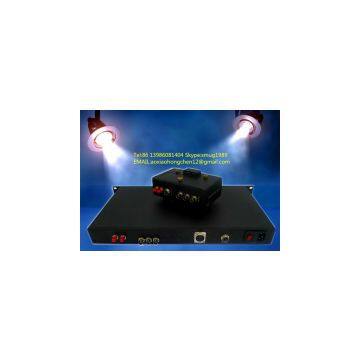

Remote control broadcast camera systems (JM-EFP-S4) consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of EFP live production system, to transmit a 3G/HD-SDI signal from the camera side to the Base Station and 1return videos (1x3G/HD-SDI), Remote control data,(1x full-duplex RS422) ,genlock, intercom(Mic audio input at TX,line level balanced audio output at RX side) , tally(dry contact closure), 1xReverse audio(1x line-level balanced audio input at RX side and output at TX sdie). The system puts all of the signals needed for multi-camera 3G/HD-SDI production onto a SM / MM fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.

Remote control broadcast camera systems (JM-EFP-S4) Power supply:

the battery power supply, the camera fiber optic adapter (TX) hanging on the camcorder via the front A gusset plate , the back hanging battery while power supply to the camera and fiber optic adapter;

Remote control broadcast camera systems (JM-EFP-S4)Features:

Easily pass the Pathological test(extremely harsh environments)

SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals

Uncompressed lossless transmission without delay;

More than 10KM transmission distance up to a maximum 80KM; when the MM fiber ,the distance up to 300 meters.

Aluminum precision manufacturing, the size is about the BP battery size, lightweight and convenient, A-type with a flexible pinch;

Supports Sony / Panasonic / JVC, etc. Remote control

Mic level input (with mute function) and amp functions (volume adjustment)

Tally/GPI output +12V or dry Contact Closure optional

Wide temperature range, low power consumption

A-mount battery optional

Remote control broadcast camera systems (JM-EFP-S4) Application:

Television studio, mobile studio

EFP Electronic Field Production, major sporting events and large celebrations broadcast live

ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
