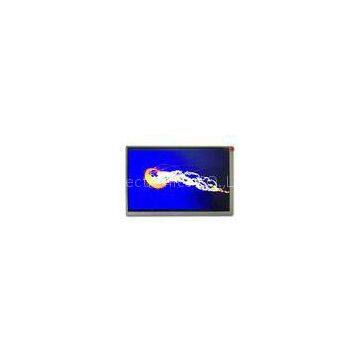

Custom 1280x800 9inch LCD Panel HJ090NA-01L Innolux LCD Monitor
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
ZE065NA-01B 6.5 inch Innolux LCD screen digital Touch Panel 800x480
-
500nits 800x480 Innolux LCD Screen ZJ070NA-01E with RGB vertical stripe
-
1024x600 ZJ070NA-01B lcd display module / led backlight lcd monitor
-
Customized LW700AT9008 7 LCD Panel 800x480 7\" lcd display module
-
800x480 HJ050NA-01I Innolux LCD screen 5 inch TFT Touch Screen Display
-
Custom 480x272 5.0 inch LCD Panel , EJ050NA-01B lcd display module 5\"
Product Details
Brand Name | Innolux | Place of Origin | China | |
Model Number | HJ090NA-01L |
Product Description
Certification:CE ,ROHS
Custom 1280x800 9inch LCD Panel HJ090NA-01L Innolux LCD Monitor
Quick Detail:
1. Lcd size:9\"
2. Resolution: 1280 × 3(RGB) × 800
3. Brightness: 250nits
4. Weight: TBD
6. Backlight: LED
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell.
Specifications:
LCD size |
9\" |
Resolution |
1280 × 3(RGB) × 800 |
Color Pixel Arrangement |
RGB vertical stripe |
Display Mode |
Normally white,TN |
dot pitch |
0.0505(W) × 0.1515(H) mm |
module size |
206.76 (W) ×135.06(H) ×3.6(D) mm |
active area |
193.920(W) × 121.200(H) mm |
Response Time (Tr+Tf) |
15ms |
Brightness(cd/㎡) |
250 nit(typ) |
View Angle direction(Gray inversion) |
12 O’Clock |
contrast ratio |
700:01:00 |
?Interface |
LVDS |
Weight |
TBD |
Panel power consumption |
0.65W(Typ.) |
Surface Treatment |
Hard Coating |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel\'s brightness.
