Product Details
| Brand Name | YASEN | Place of Origin | China | |
| Model Number | YX-2832TSWEG04 |
Product Description
Certification:CE ,ROHS

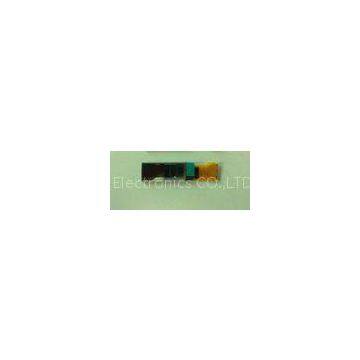

28*32 resolutiong 15 pin OLED screens , monochrome oled display
Quick Detail:
1. Lcd size:0.91”
2. Resolution:128*32
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
| Display Mode | Passive Matrix |
| Display Color | Monochrome (White) |
| Drive Duty | 1/32 Duty |
| Outline Drawing | According to the annexed outline drawing |
| Number of Pixels | 128 × 32 |
| Panel Size | 30.00 × 11.50 × 1.25 (mm) |
| Active Area | 22.384 × 5.584 (mm) |
| Pixel Pitch | 0.175 × 0.175 (mm) |
| Pixel Size | 0.159 × 0.159 (mm) |
| Weight | 1.05 (g) |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel\'s brightness.
