Product Details
| Brand Name | CRT | Place of Origin | China | |
| Model Number | CRT-591-(001)HB-HDN |
Product Description
Certification:EMV/PBOC

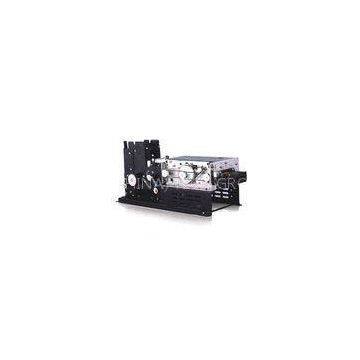

Account Opening System RS-232C RFID / RF Card Dispenser , Magnetic Stripe Card Dispenser
Quick Detail:
CRT-591 card dispenser (IC/RFID/Magnetic card read &write, dispensing /capturing/accepting function, removable stacker with locking function, with EMV certified)
Description:
IC/RFID/Magnetic card read & write
With cards pre-empty detection
Stable card dispensing /capturing/accepting function
Removable stacker with locking function
Very compact and robust
Applications:
Parking management system
Automatic card vending machine
Highway card issuing system
Technical Specifications:
|
Card Standard |
Magnetic Card: ISO7810 ID-1,7811 |
|
Card thickness |
0.2 ~ 1.0mm |
|
Card size |
55 × 86mm |
|
Life Time |
1,000,000 times ( In the condition: 205℃, 35~60%RH, Dispense cycle ≤ 1pcs/min) |
|
Stacker Capability |
120pcs / 0.76mm Standard Card |
|
Removable stacker |
Short card stacker 240pcs / Long card stacker 500pcs |
|
Card Pre-empty Detection |
7~50pcs ± 2pcs ( Default setting: 15pcs) |
|
Communication |
RS-232/USB(HID) |
|
Power supply |
DC 24V ± 5% |
|
Temperature |
Operation:0 ~ 50℃/0 ~ 90%?RH(Non condensing) |
|
Dimension(L*W*H) |
391.5*146.8*175mm |
|
Weight |
About 4.0kg |
Annex 1 . Structure and Dimension Drawings
