Product Details

Brand Name	Creator		Place of Origin	China
Model Number	CRT-541

Product Description

Certification:CE, EMV

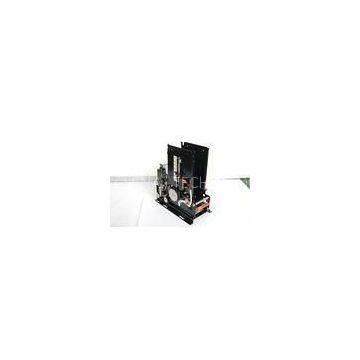

Magnetic RFID Card Dispenser With Pre-Card Dispensing For Parking System
?

Quick Detail:
?

Pre-issuing capabilities to speed up issuing speed Unique design of the paper card issuers Special design for protecting reader from foreign object Extended design makes card capacity of stacker flexible · Prevent 2 cards dispensing. · Paper card dispensing design. · Easy adjustment of card thickness. · Easy card loading & maintenance. · Support ISP downloads on-line. · Support multi-units communication. · Card stacker empty and pre-empty detection. · Pre-Card dispensing function. · Iron-Block available to fit. · RoHS standard compliant.

?
?
Description:
?

CRT-541 Card Dispenser?

? Output gap fixed design?against dual card feeding

??Pre-issuing capabilities to speed up issuing speed

??Unique design of the paper card issuers

??Special design for protecting reader from foreign object

??Extended design makes card capacity of stacker flexible

??RoHs compliant

?
Applications:
??Automatic vending machine
??Highway card issuing system
??Subway and public transport card issuing
??Ticket vending system
??Prepaid card vending system
?
?
Specifications:
?

ITEM	Specification
Power Supply	DC 24V±5%
Current Consumption	Static current: 10mA?? Normal work current: 800mA??? Peak current: 1.5A
Card feed-out speed	> 1 Card/s (Transportation Speed)
Interface	RS-232C, TTL(customized)
Card Dimensions	Size: 55mm×86mm Thickness: ≥0.20mm (≥1.2mm require customization) Ex-work standard card thickness is 0.8 mm
Weight	About 2.0 Kg(without accessories and package)
Card stacker capability	120pcs in case of 0.76mm standard card (Available to set to 500pcs max)
Card pre-empty detection	7~50pcs ± 2pcs (Default setting: 15pcs)
Environment	Operation:? 0℃～50℃,? 0～90 % RH? ( Without Condensing) Storage:? -10℃～75℃,? 0～95 % RH? ( Without Condensing)
MTBF	≥100,000 hr(only electric parts), note:250 times/day,25days/month,300hr/month
life time	500,000 times ( In the condition: 20±5%, 35~60%RH, ≤ 1pcs/min)
RoHS standard	Compliant RoHS standard
