Nanpi Huatong Roll Forming Machinery Manufacturing Factory,: Ankang, Shaanxi, China; Main products:

Home > Products > Guardrail Roll Forming Machine > Hydraulic Automatic Highway Guardrail Roll Forming Machine W Beam

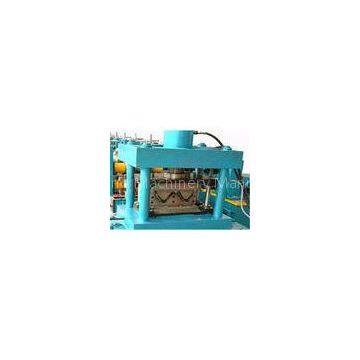

Hydraulic Automatic Highway Guardrail Roll Forming Machine W Beam

FOB Price

Negotiable / Metric Ton

1 Metric Ton(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HuaTong		Place of Origin	China
Model Number	guardrail roll forming machine

Delivery Time:45 days after receipt of the advance deposit.
Certification:ISO9001：2008

Hydraulic Automatic Highway Guardrail Roll Forming Machine W Beam

Quick detail

Name	Guardrail roll forming machine	Application	Road
Color	Any	PLC	TAIDA
Line speed	3-10m/min	Tile	Steel
Warranty	1 year	Certification	ISO9001:2008

Profile drawing of the production

Production flow chart of the roll forming machine

Functional features :????????????

1. Our?machine?can?use?galvanized?steel?sheet,colored?armor?plate?or?aluminum?plate?as?the?material?plate.

2. Controlling?by?computer,PL?display,operationis?easy,running?is?steadyand?reliable,endurable,maintence-free.

3. We?can?make?and?design?what?kinds?of?roll?forming?machine?according?to?the?request?of?customers.

4. OEM?/?ODM?,Customers`?Design?,Size,Color&Logo?are?accepted.

5. With?20?years?professional?manufacture?experience

6. Prompt?Delivery&Competitive?Price

7.?Main?markets:?Middle?East,?Europe,?North?America,?Africa,Southeast?Asia, Latin America etc.

8.?After-sales?service:

1. We?provide?the?technical?support?for?whole?life?of?our?machines.

2. If?buyers?need?the?technician?to?go?abroad?,we?will?arrange?the?technician,but?the?buyers?should?take?

all?the?cost,including?visa,roundtrip?ticket?etc.

Specification

condition	New
voltage	380V/50HZ/3 Phases
certification	ISO9001:2008
Type of machine	Tile roll forming machine
Motor power	18.5kw
warranty	1 year
Production capacity	15m/min
Dimension	12m1.0m1.3m
Step of roller	16 steps
weight	About 15T
After-sales service provide	Engineers available to service machinery overseas
Diameter of shaft	95mm
Line speed material of shaft	3-10m/min
Material of roller	GCr15
Material of shaft	45#steel
Treatment of roller	hard chromize coated 0.05-0.07mm
Material of frame	(high grade)360mm H shape steel welding
Thickness of plate	25mm
Drive type of roll forming machine	chain
Chain	50.8(high grade)
Bearing	6312(high grade)
Reducer	8#cycloid reducer(high grade)
Feeding width	486mm
