Home > Products > Commutating Capacitor > 3KV CE Water Cooled Capacitors Copper Power RFM0.375-500-1S Capacitor

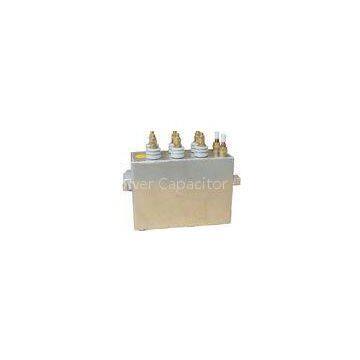

3KV CE Water Cooled Capacitors Copper Power RFM0.375-500-1S Capacitor
- T/T L/C D/P D/A
- 7 days
You May Like
-
Large Compensation Power Commutating Capacitor 3000KVAR for Electrical
-
Water Cooling Induction Heating Capacitors , RFM0.375-1000-2.5S
-
Electric Heat Commutating Capacitor Voltage Controlled RFM0.5-500-1S
-
AC High Power Commutating Capacitor , Induction Heating Capacitors
-
High Voltage Commutating Capacitor 3000KVAR with Water Cooled Tube
-
Shunt High-voltage Power Correction Capacitors with Liquid Medium
Product Details
| Brand Name | Xin an jiang | Place of Origin | China | |
| Model Number | RFM0.375-500-1S |
Product Description
Certification:GB/73984-2004/IEC60110-1998,CE
3KV CE Water Cooled Capacitors Copper Power RFM0.375-500-1S Capacitor
Quick Detail:
Type: Power capacitors??
Application: induction heating
Package Type: Surface Mount
Capacitance: 0.375-3000KVAR ???
Rated Voltage: 0.375kv-3KV ??????
Operating Temperature: -25℃-+50℃
Free discharge: resistance inside
Standard: GB/73984-2004/IEC60110-1998
Certificate: CE, ISO9001
Application and functions
RFM water-cooled electric capacitor can be applied in AC power system which can be controlled or adjusted at rated frequency to improve the power factor or circuit characteristics of devices for heating, inducing, melting, stirring or molding, etc.
Specifications
|
Model |
RFM0.375-500-1S |
|
Rated capacity(kvar) |
500 |
|
Rate voltage (Kv) |
0.375 |
|
Rate frequency(Khz) |
1 |
|
Codes and standard to be applied |
GB/73984-2004/IEC60110-1998 |
|
Tropicalized execution |
>10% / <95% |
|
Min. / Max. Ambient temperature inside electrical cabinets |
-25°C / +50°C |
|
Equipment storing temperature |
0°C / +40°C (*) |
|
Terminals material |
Copper |
|
Case material |
Aluminium/Copper |
Description:
R: electric capacitor (series code)
F: diphenylethylane (liquid medium code)
M: full film dielectric (solid medium code)
0.375: rated voltage (kV)
500: rated capacity (kvar)
1: rated frequency)Khz)
