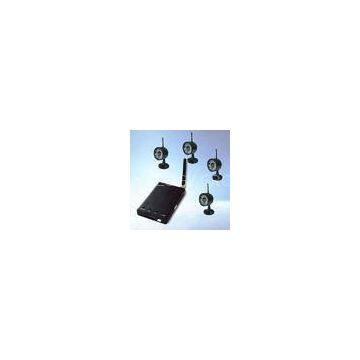

1/4" CMOS 2.4GHz Wireless Camera
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
Brand Name | DEKE | Place of Origin | China | |
Model Number | DK-121B |
Product Description
Certification:CE
2.4 ghz mini wireless camera
1. Camera built-in LED, IR night vision
2. Video playback by use of self-support software and player software
3. Built-in microphone,support audio transmission
Digital 1/4\" CMOS 2.4GHz Wireless Camera Anti-interference
Description:
Product Features:
-2.4GHz frequency wireless digital signal, no interference
-Each receiver support 1-4 cameras
-Photo taking and video recording ( Motion Detection )
-Video playback by use of self-support software and player software
-Built-in microphone,support audio transmission
-Camera built-in LED, IR night vision
- Receiver with USB 2.0,can connect with computer
-High security and strong anti-interference
-Wasy to install,no need of wiring,and cheap installation cost
Applications:
Indoor / outdoor environment, night club hotel,department store, recreation center, supermarket, machineroom, parking lot, coal mine, factory, traffic, breeding farm, construction site, forest scientific investigation and dangerous place,etc.
Specifications:
Basic Parameters |
Operation Frequency |
2.40-2.483GHz |
Modulation Mode |
FSK |
|
Receiving Distance |
500M to 1000M(LOS) |
|
Operation Temperature |
-30 to +75 centigrade |
|
Operation Humidity |
20% to 80% |
|
Receiver Parameters |
Pixels |
640*480 |
System |
NTSC/PAL |
|
Signal Receiving |
1-4 call wireless signal input,4 call division |
|
Frame Rate |
25-30 fps |
|
Power Supply |
DC5V 500mA or Battery |
|
Dimensions |
102*88*15mm |
|
Camera Parameters |
Image Sensor |
1/4\" CMOS |
Effective Pixel |
CCIR:640*480 EIA:510*492 |
|
Lens |
3.7mm / F2.0 |
|
Minimun Illumination |
F1.2 0.5Lux |
|
Shutter Speed |
1/50(1/60) 1/100000 Second |
|
SNR |
>48db |
|
Signal System |
CCIR / EIA |
|
Audio Output |
2VPP50 ohm |
|
Video Output |
1.0VPP75 ohm |
|
Power Supply |
DC 5V 500mA or Battery |
|
Dimensions |
55*55mm |
Package include:
Wireless digital camera 1pcs
Wireless receiver 1pcs
Power adapter 1pcs
User Manual 1pcs
A/V cable 1pcs
Antenna 1pcs
Competitive Advantage:
1).2.4GHz digital receiver and camera
2).With 4 frequency,adjustable
3).IR camera,night vision
4).Each receiver support 1-4 cameras
