1250mm CNC Gear Shaping Machine For Machinery Industry , Grade 7 Working Accuracy

1250mm CNC Gear Shaping Machine For Machinery Industry , Grade 7 Working Accuracy

Quick Detail:

The machine is suitable for batch production of rack used in printing machinery, food machinery, petroleum machinery and machine tool manufactures as well as small lot and jobbing production of racks used in machinery industry.

When a helical guide is mounted and the special cutting tools are adopted, helical racks can also be cut on this machine.

The working accuracy of the machine can reach Grade 7.

If Grade 6 is required, YM58125A Precision Rack Shaper is recommended.

Description:

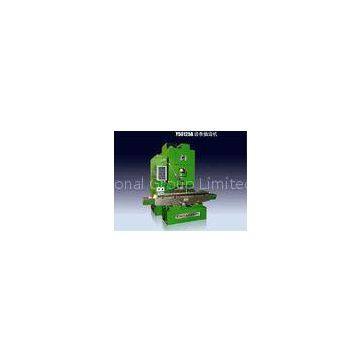

1)????? Model Y58125A Rack Shaper is a machine with high rigidity and easier modification, on which the cutter head swings for relieving motion and the worktable travels for radial feed.

2)????? The reciprocating movement of the cutter spindle is directly carried out through the crank disk and connecting rod with a ball head, so 538 strokes per minute can be obtained.

3)????? The single-directional working cycle and bi-directional working cycle used on the machine can meet the needs to cut all kinds of racks.

4)????? The twelve steps of the main movement can be selected and the speed change is convenient.

5)????? The precision screw is adopted in radial feed which ensure the repeated cutting accuracy.

6)????? Two push buttons, ‘Rapid Jogging’ and ‘Slow Jogging’ are used to control the movement of cutter spindle, the ‘Slow Jogging’ can stop the cutter spindle at any desired position.

7)????? This machine can be varied to other versions. Any special requirement by the customers will be satisfied with the version of the machine.

8)????? For meeting the requirement of customers, we can also offer services including design and manufacture of fixtures.

Specifications:

Company Profile:
?
Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers.? With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery.? Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide a great variety of advanced gear machinery to the market. The company is using the leading 3D designing s
