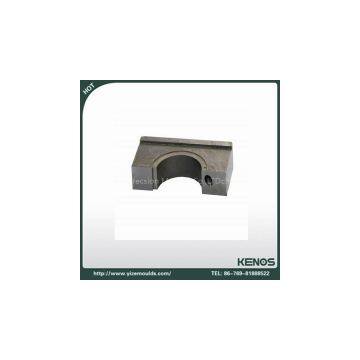

Dongguan precision punch tungsten carbide mold parts

Dongguan precision punch tungsten carbide mold parts

Our Products

1)production mode : accroding to drawings and samples to process

2)material:tool steel and high speed steel,SKD61,SKD11,SKH51,etc

3)technique standard : according to national standard GM, JIS,DIN,AISI ect, and other national standard to making

4)4)technique advantage : grinding precision within 0.001mm, EDM/wire cut precision within 0.005mm

grinding/EDM angle clearance within R0.01.

5)utilization scope : precision punch mold, precision plastic mold, precision auto mold, precision medical  mold, precision computer connector mold and other factory automation part etc.  with many areas

6)production equipment :Two sets of milling machines, two sets of CNC lathe, two sets of cylindrical grinders,one deep hole drilling machine,30 sets of surface grinders,12 sets of EDM machine,2 sets of CNC machine,4 sets of wire cut machine

7)product accuracy :  diamension tolerance +-0.001mm, axiality within 0.002mm,roundness within 0.0015mm, surface roughness within Ra0.025, straightness within 0.002

8)packaging type : inner package with recycle plastic box after anticorrosive oil spraying,out package with sponge and PE bag.

9)cooperation customer : Japan,USA,Europe,Southeast Aisa,etc

Characteristics of shaft tungsten carbide mold parts is composed of a plurality of surface of revolution, the ultimate precision tungsten carbide mold parts machining methods of modern enterprises generally adopt the internal and external circular grinding machine. In the tungsten carbide mold parts process, using grinding chuck and tailstock clamping and positioning the workpiece or with both the two thimble positioning, center line and center line of the chuck tungsten carbide mold parts is grinding workpiece, if the center line jumping, workpiece will be processed to produce different tungsten carbide mold parts problems, so in the processing must be done before the chuck and the top of concentric detection and the end of inspection. If you are using tungsten carbide mold parts clamping and positioning chuck and a grinding step shaft, in this once grinding before the first clamping tungsten carbide mold parts cylindrical grinding, tungsten carbide mold parts can centering and positioning a grinding.

Welcome to figure offer, the price is for reference only, we have a professional considerate service to you.

shiyipart11 recommend you tungsten carbide mold parts
