Heavily Galvanized And Zinc Hexagonal Gabion Mesh Machine 2300mm

Heavily Galvanized And Zinc Hexagonal Gabion Mesh Machine 2300mm

Quick Detail:

1.The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes.

2.The possible coatings are heavily galvanized and zinc.

3.For high corrosion resistance, zinc and PVC, galfan coated wire is available.

We can manufacture gabion machine according to customer request.

Gabion Application

?Gabion Machine widely used in oil, construction, raising, chemical industry warming piping and etc. It is also

used in fence, apartment and greening. The hexagonal wire netting can be used in protect sea wall, hillside,

road, bridge and civil engineering. It is one of the best against flooding material.

Main Specification:

?1. Mesh sizes: 80X100mm

2. twist: double twist

3. Max. netting width: 2300mm

4. Max. galvanized wire diameter: 1.6-3.2mm

5. Max PVC wire diameter: 4.2mm

6. Spindle Speed:25r/min

7. Power: 11Kw

8. Weight: 15MT

9. Theoretic output: 195m/hr

10. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop automatically

11. Infrared ray safety protection system (option)

12. Automatic oil system

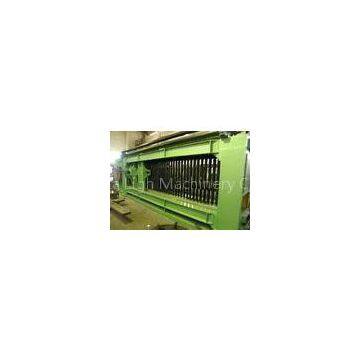

Picture For Gabion Machine Working

Competitive?Advantage:

1.?JINLIDA?company?invented?the?first?special?equipment?of?double?twisted?wire?netting?making?machine?in?

China?(patent?number:?ZL99229381.2?and?ZL00267066.5).?And?until?now,?we?have?persevered?in?this?area?

of?gabion?machine?making?for?15?years.

2.?All?the?parts?of?gabion?machine?are?processed?by?our?own?factory;?no?parts?were?send?to?outside?to?

process,?so?the?quality?can?be?ensured.

3.?We?can?provide?12months?guarantee?for?all?the?equipments,?and?if?customer?need,?we?will?arrange?our?

technician?to?help?install?the?machines?in?your?country,?and?also?could?supply?all?the?spare?parts?with?cost?

price?if?customer?need.
