Home > Products > Injection rail > CNG LPG injection rail for sequential injection system

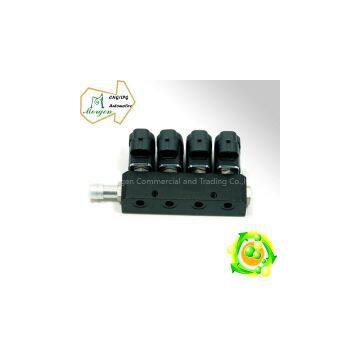

CNG LPG injection rail for sequential injection system
US$ 12.68 - 12.68
/ Piece
5 Pieces(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Morgen | Place of Origin | China | |
| Model Number | MG-I04B |
Product Description
Parameter details:
Working pressure | 0.5~2.0Bar |
ure | 3.2Bar |
Coil resistance | 3.0Ω3% |
Voltage | DC12V15% |
Peak current time | 3.5ms |
Min.injection pulse | 3.0ms |
Flow | 9500nl/h |
Opening time | 3.5ms5% |
Closing time | 3.3ms5% |
Inlet gas fitting | Dia 10mm,Dia 16mm |
Outlet gas fitting | Nozzle M8*1,Dia. 7mm(Outside Dia) |
Nozzle aperture size | 1.5~4.0mm(0.25mm step) |
Ambient Temp. | -40~120 celsius |
Weight | 0.5kgs |
Installing size | 2-M5 Distance 54 |
