Home > Products > Outdoor Advertising LED Display > 1R1G1B P16mm Outdoor Advertising LED Display Steel / Aluminum 20 x 20

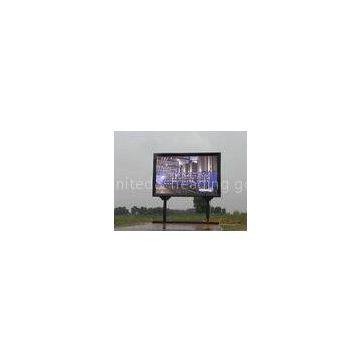

1R1G1B P16mm Outdoor Advertising LED Display Steel / Aluminum 20 x 20
- T/T L/C D/P D/A
- 7 days
You May Like
-
120 Outdoor DIP Advertising P16 LED Display , Square LED Screen CVBS
-
Synchronous Advertising LED Video Display P20 For Outdoor 800W / 2500dot /
-
2R1G1B 16mm Outdoor Advertising LED Display Full Color For Shopping Mall , 6000 cd/
-
4 Grade P 20 Outdoor LED Screen Display For Advertising 2R1G1B AC220V
-
Static DIP P25 Outdoor LED Advertising Display / Billboard 200mm 200mm
-
Indoor P4 Rental LED Screen / Die - Cast Display For Stage Background
Product Details
| Brand Name | UHLED | Place of Origin | China | |
| Model Number | P16mm |
Product Description
Certification:CE, CCC, FCC, ROSH, ISO9001
1R1G1B P16mm Outdoor Advertising LED Display Steel / Aluminum 20 x 20
Quick Detail:
(1) Computer control with software
(2) High resolution, top vision
(3) Show images, videos, texts, messages......
(4) 2-5 years warranty
Features:
(1) Brightness adjustable
(2) High Refresh Rate reach to 3000Hz or more
(3) Long lifespan and stable quality
(4) Working under the temperature -30C to +75C
(5) Save 35% power than normal screens
Application:
advertising LED display, shopping mall LED display for logo showing , bank & stock exchange LED display for rates showing , train & bus station , airport , telecommunication LED screen system for information showing and instruction , Stage performances and so on.
Function:
Excellent visual effect, clear and exquisite Good flatness. Easy to clean, welding spots inoxidizable. Closer look available, better effects without glare and mosaic. Good viewing angle. Easy to assembly, install and transport with simple packing and convenient use. Vivid mixed colors. No color cast when look from different angles. Excellent heat-sinking, high stability, no scrapped lamp.Specifications:
|
Outdoor P16 Advertising LED display(DIP)--Real Pixel |
|
|
Product type |
P16 |
|
Pixel pitch |
16mm |
|
Pixel constitution |
1R1G1B |
|
LED package mode |
DIP |
|
Pixel density |
3906dot/㎡ |
|
Scan mode |
Static |
|
Brightness |
> 6000 cd/㎡ |
|
Module resolution |
20*20 |
|
Module size |
320mm*320mm |
|
Max. consumption |
800W/㎡ |
|
Ave. consumption |
320W/㎡ |
|
Viewing angle |
Horizontal 120°/Vertical 50° |
|
Cabinet |
Customized (size, color, design etc.) |
|
Control Method |
Synchronous |
|
Frame frequency |
≧ 60Hz |
|
Refresh Rate |
≧ 400Hz,Max. 2000Hz |
|
Grey level |
≧ 4 grade |
|
Brightness adjustment |
Manual or Auto 100 grade |
|
Working temperature |
-10 OC — +45 OC |
|
Working voltage |
AC220V±10%；50Hz(AC110V optional) |
|
Video interface |
VGA,DVI,CVBS,Y/C,YPbPr,SDI/HDSDI,HDMI etc. |
|
Communication distance |
Network cable≦100m; Multimode Fiber≦500m; Single mode Fiber≦10km |
|
Average fault-free |
5000hours |
|
Life span |
100000hours |
|
Defect ratio |
≦0.1‰ |
|
control system |
DVI display card + full color controller card |
Competitive Advantage:
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that\'s the guarantee of the quality and r
