Villa Sectional Overhead Garage Door Finger Protection With Rust-resistant

Brand Name	Master		Place of Origin	China
Model Number	SF40, SF40S

Delivery Time:shipped within 15-30 days according to order quantity
Certification:CE
Villa Sectional Overhead Garage Door Finger Protection With Rust-resistant

Quick Detail:

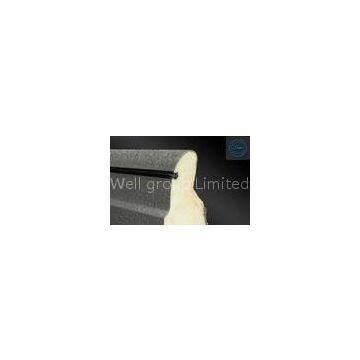

1. Sectional garage door panel with finger protection

2. RAL Color panel

3. High strength PU rigid foam

4. Galvanized steel panel

5. Finished surface

6. High resistance to bending

Description:

Material: galvanized steel with Polyurethane insulation Steel thickness: 0.35mm, 0.45mm ( white color only) Panel thickness:40 mm Foaming material: polyurethane Density of foam: 43-45kg/m3 Panel type: Finger protection panel & non-finger protection panel Construction: sandwich contraction Panel width: 440-550mm Max panel length: 12m Weight: 8.5kg/m2 Surface finishes: wood grain, orange peel, flush Panel design: rectangle woodgrain design Standard package: carton box with film for 4 or 5 pieces of panel, usually as full set of garage door panel Normal color: Off white RAL9016

Normal Solid colors: Brown RAL8014, Anthracite grey RAL7016, Silver RAL9006, Light beige RAL1019, Ebony RAL9004, Red RAL3000, Blue RAL5015;

Timber color: Mahogany, Gold oak, Dark oak, Black walnut

Single track and double track:

Single track only: 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm

Double track only: 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm

Full set of hardware: Torsion spring, Hinges, Cable drum with cable, Central bracket with bearing, 1\'\' tube shaft, Mounting brackets and other accessories for a complete set Emergency lock for manual operation when power off Residential garage door opener: 800N, 1000N, 1200N, 1500N

Applications:

The sectional garage door panel with finger protection can be inserted the windows to allow daylight to enter your garage, provide it with further uses, e.g. as a workshop or hobby room. Please kindly check out the following picture of panel with window.

Specifications:

? 1	Material	Galvanized steel with PU foaming inside
? 2	Material Construction	Steel-foam-steel, sandwich panel
? 3	Thickness	Section thickness 40mm; Steel thickness 0.35mm
? 4	Section Style	Non-finger protection (SN40); Finger protection (SF40S,SF40)
? 5	Section Size Range	430mm-550mm in height Max 12000mm in width
? 6	Section Surface Finish	Wood grain, orange peel, flush
? 7	Front-side design	Wood grain, with Rectangle/stripes design
? 8	Backside design	Wood grain, with Stripe design
? 9	Accessories	Single Track with min headroom for 350mm; Double Track with min headroom for 150mm
?10	Door Openers	AC220V or 110V; DC Motor; 800-1500N
?11	Opening Way	Electrical control and Manual operation
?12	Color	White (RAL9016), other colors can be customized

Competitive Advantage:

1.??Low?MOQ:?One set is available for checking our quality first conveniently.

2.??Good?Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.

3.??Good?Service:?Our professional service before and after sale.

4.??The reasonable price

5.??Fast?&?C
