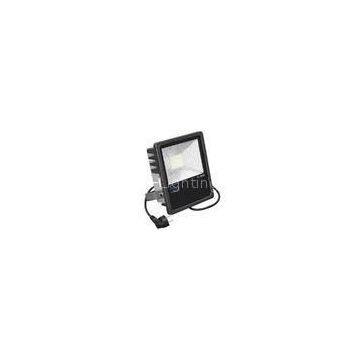

110lm/W installation cost Waterproof LED Floodlight For Exhibition halls

Brand Name	S-Tech, Lightingtalk		Place of Origin	China
Model Number	FLA-SC50W

Delivery Time:3~7days
Certification:CE/RoHS/C-tick/SAA

110lm/W ?installation cost Waterproof LED Floodlight For Exhibition halls

Quick Detail:

Model Number: FLA-SC50W Item Type: Flood Lights Light Source: 3030SMD Epistar LED chip Lamp Body Material: Aluminum Alloy+ toughened glass+ ASA Industrial plastic+ Japan DENKA HITT PLATE or HITACHI Thermal Conductive PCB+ 0.8m H05RN-F rubber cable Power: 50W±5% Input Voltage: 100~240V AC / 50~60 Hz Lamp Luminous Efficiency: >80lm/w IP Rating: IP65 Certification: CE, RoHS, C-tick,, SAA Warranty: 3 years

Description:

Product: 50W led floodlight IP65 SMD Model Number: FLA-SC50W Lamp Body Material: high quality aluminum alloy+ ASA Industrial plastic+ durable toughened glass, the light transmittance is about 93% ? Light Source: high brightness and stable 3030SMD Input Voltage: 100~240V AC / 50~60 Hz Power: 50W±5% Lamp Luminous Flux(lm): 4200Lm±10% Lamp Luminous Efficiency(lm/w): >80lm/W CRI (Ra>): >75 Color Temperature: Warm White(3000K), Natural White(4000K), Cool White(5000K), Cold White(6000K) Beam Angle: >120° Working Temperature: -20℃~40℃ Storage Temp. : -40℃~65℃ Lifespan @25℃: 40,000hrs IP Rating: IP65 Certification: CE, RoHS, C-tick,, SAA Warranty: 3 years N.W.(g): 2030g

Applications:

Widely used in the lighting of government project, billboards, bridges, squares, stadiums, trees, building walls, metro station, flyover, park and so on.

Specifications:

Rated Voltage (VAC/Hz)	100~240VAC / 50~60 Hz
Wattage (W)	50W
Power Factor (PF)	>0.90
Lumen(Lm)	3500-4200Lm
Beam Angle	>120°
Flux(Lux)@2M	330Lux
Lifespan (hrs) @25°C	40,000hrs *
Ambient Temp. (°C)	-20°C~40°C
Storage Temp. (°C)	-40°C~65°C
N.W.(g)	2030g
Warranty	3years
IP Rating	IP65

Item B:SMD LED	CCT(K)	CRI(%)	Lumen(Lm)	Flux(Lux)@2M
FLA-SC50 floodlight Q80B	2700K	＞80%	3400Lm	320ux
FLA-SC50 floodlight T70B	4000K	＞70%	3800Lm	355lux
FLA-SC50 floodlight V70B	5000K	＞70%	4000Lm	375lux
FLA-SC50 floodlight W70B	6000K	＞70%	4100Lm	385lux

Dimension:

Length A	Length B	Length C	Length D	Length E	Length F
194mm	226mm	149.4mm	113.5mm	95mm	253mm

Packing Criterion: Qty/CTN:6pcs

Gross Weight: 20Kg

Inner Box: 310×263×140mm

Outside Carton: ?635×490×550mm

Competitive Advantage:

1. The cooling area be maximized and the weight was minimized by the favorable combination of the high quality aluminum alloy sheet.

2. Total 620cm2 cooling area. LED driver contact with the heat sink directly and the heat dissipation is much more quicker and stronger

3. Material Features: high quality aluminum alloy sheet+ ASA Industrial plastic+ durable toughened glass+ Japa
