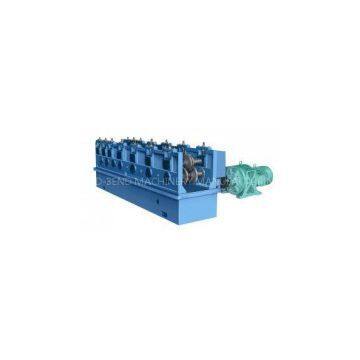

Automatic 2 & 3 Wave 4T Highway Guardrail Roll Forming Machine with 72mm Shaft

Automatic 2 & 3 Wave 4T Highway Guardrail Roll Forming Machine with 72mm Shaft

Applications:

It?is?used?for?expressway?anti-collision?guard?rails?and?columns.

Specifications:

1.Leak?frame?load-bearing:4T?

2.?Rack:?welding?with?300H?steel

3.?The?form?of?forming?machine?guiding?filling:?side?skip

4.The?form?of?forming?machine:?chain?drive?with?wallboard?type, ?the?thickness?of?wallboard?is?12mm.

5.?Diameter?of?Shaft?is:?72mm

6.Chain:?0.6?inch?single?row

7.?Main?motor?power:3kw?double?pole?reduction?box

8.?Forming?Speed:?8m/min

9.?Number?of?tracks:?11?tracks

10.?Roller?material:?high?grade?45#steel

11?Hydraulic?station?power:?3kw

12?Hydraulic?station?oil?pump:?gearpump

13?Cutting?type:?hydraulic?cut

14?Forming?Cutting?blade:?Cr12?

15?Heat?treatment?on?cutting?blade:?HRC58°-60°

16?Thickness?of?coil?sheet:?0.3-0.8mm

17?Coil?width?of?material:?1000mm

18?Index?error?of?length:?±2mm

19?Controlling?system:?PLC

20?Voltage:?380V?3phase?60?HZ?or?at?buyer’s?requirement?

Material?of?main?equipment:

Roller?material:?high?grade?NO.45?forged?steel, ?plated?hard?chrome?on?the?surface?of?roller?with?thickness?0.05mm.

Active?shaft?material:?high?grade?NO.45?carbon?wrought?steel?at?diameter?72mm.

Cutting?blade:?Cr12?mould?steel?with?quenched?treatment.

Description:

This equipment is a specialized machine set for the guardrail cold roll forming machine. It is designed and produced according to the requirements of our customers. It is belong to non-standard product.

The first step is to put raw material on a cart, the cart will lift roll material up to the rack automatically. Hydraulic spading feeds the material into straightener, and enter into main machine. Die of main machine will progressively form to reach desired dimensions. Straightening device will help to eliminate internal stress to ensure flatness of products. Cutter will cut a intented length. Finally, the finished products will be moved away from the receiving platform.

Competitive?Advantage:

1. Automatic?roll?forming?machine

2. High?quality
3. Factory?direct?price
4. Design?by?COPRA@?software?from?Germany

5. On?time?delivery

6. Good?service
