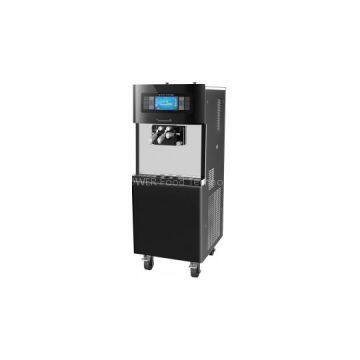

New designed LCD touch screen ice cream machine DW138CL

2013 New designed LCD touch screen ice cream machine
Siemens triphase motor
Microchip control system
Steady SetEvent with frequency conversion
Imported main compressor
Pre-cooling and fresh-keeping.
baking varnish craft
Characteristics:
1.Imported main compressor
2.pre-cooling compressor(50HZ, 60HZ-KK)
3.Siemens three-phase motor
4.Real-time display for making progress
5.Counting system
6.Low mix alarm
7.Voltage and current display
8.Four languages interface selection: English, Franch, Spainish, Portuguese
9.Fault alarm for three common faults ( voltage, current, liquid level )
10.Optional background

Specifications:

Model No.DW138PCL

Power220V 50Hz/60Hz

Rated Current Input(A)14

Rated Power Input(W)2500/2700

Rated Power Consumption (kw. H /kg)0.145

CondenserAir cooled

RefrigerantR404A, R134A

Cylinder1.83L×2

Mix Hopper12L×2

Working Temperature10°C-38°C

Capacity38 L /h

Net Weight / G. W.190kg /208kg

Dimension (mm)735′560′1470

With new fashion appearance design, DW138CL uses baking varnishh craft on the front panel and stainless steel lock catch. And magnetic stirrers, microchip control system and steady SetEvent with frequency conversion are also adopted in this ice cream machine.

Options:
Color: Silver /blue / black
Air pump: Available
Rebound handles: Available
Discharge door designed by KTH: Available
Beater: Stainless steel / plastic beater
Cone dispenser: Available
Big castors: Available
Air exhaust: Side / back

Service
1. Guarantee Time: 12 month
2. Extra spare parts are attached with order for stock accessories
3. Specialized after-sales team offer technology support
4. HK support office
5. Annual international seminar for technology update and after sales service experience exchange

Oceanpower
1. As the leader soft ice cream &frozen yogurt machine manufacturer in China since 1996, we get over 20 patent technology and mature product for international market.
2. In 2005, Oceanpower is authorized by the Standardization Administration of China to set the national standards for soft ice cream machine and powder
3.Now we have 44000 square meters factory in Heyuan city, Guangdong province.
