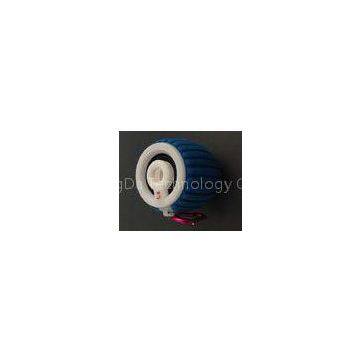

Portable Bluetooth Wireless Speaker For Indoor / Outdoor Party , Bluetooth Enabled Speaker

Portable Bluetooth Wireless Speaker For Indoor / Outdoor Party , Bluetooth Enabled Speaker

Function:

It is 1 channel Bluetooth speaker that can be wirelessly connected to Bluetooth devices such as smart phones, tablets and computers to playback any music collection stored on them. Thanks to its powerful battery, the system delivers full stereo sound, separate from any mains supply,for up to3-6 hours and is the perfect companion for the park, whilst camping or on the beach. Process control,can get rid of complicated connections and wiring distance constraints ,the user can enjoy high quality music.

Bluetooth function:

Turn on the speaker and the Blue led will be flashing to enter into pairing mode. Pairing time is around 3-10 seconds (varied by the audio device). A sound will be out with successful pairing and you could enjoy the music wirelessly.

Connect to mobile phones / tablet PCs / computers:

1. Activate your phone’s Bluetooth

2. Go to your phone’s Bluetooth settings, scan for new Bluetooth devices

3. Upon device found ( BT speaker ) , click the device name and pair with it

4. If? your phone ask for pairing code,please enter “0000” and confirm

5. After successful pairing, your speaker will sound a prompt tone and the power LED Lights blue.

External audio Function:

Plug the Micro USB Cable audio extension cable to speakers and audio devices under power on status.

Specification:

Speaker Interface:

Audio input connector ; Micro USB Cable to support external audio source

Charging interface:Micro USB Cable

Dimension: H83 * ф71MM

Weight: 190g

Accessory:

1. Micro USB cable ( for charging)

2. Micro USB cable (Aux input cable)

3. User Manual

Electrical Specifications:

Compatibility:

Bluetooth 3.0 Classll support the A2DP V1.2 , AVRCP V1.4 profiles agreement.

Transmission distance:10M (transmission distance is different due to different environmental factors and audio device)

Maximum output power:3W*1

Channels Single channels

Signal to noise ratio S / N :≥80dB

Frequency Range : 180Hz - 20KHz

Distortion THD : ≤ 1%

Speaker unit : outer diameter 40mm , inner magnet , 4 ohms, 3W

Parameters of power :

Rated voltage : 3.7V DC

Battery : built - in lithium battery , 3.7V / 350 mAH

Charge voltage : 5V ±　0.25V

Charging time : 3 - 4 hours

LED status:

1. Bluetooth status : blue light flash

2. Line in mode : green light flash

3. Charging status : red light flash

4. Charging completed : red light off

Charging connection:

Connect the micro USB charging cable to a computer or USB charger , red Led indication for charging status.

Computer connection

No Need to install the Bluetooth software if computer itself has the Bluetooth function ; Install the Bluetooth software first if computer don’t have Bluetooth;

1. Click the Bluetooth icon on the right corner of computer and select the “Add the equipment”

2. It will search the Bluetooth devices automatically and speaker will be showed;

3. Turn on the speaker and computer will auto install the driver and will show succeed to install

4. If? you need to enter a password to the pairing process , please enter “ 0000 ”

5. Please use the media center from computer itself , if need to adjust the next or previous songs after connecting with Bluetooth speaker.

Handsfree , Volumn songs adjustment Switch operation:

Function

User entry

Answer? / end a call

During Bluetooth status , short press? key to answer the incoming call , short? press? again to end the call and back to play music

Lgnore incoming call

Long press key? for 5 sec to open the bluetooth

Remarks: Under Bluetooth mode when the 3.5mm audio plug is inserted in , the speaker will switch to line in status automatically;

Note: please switch off? the speaker if don’t use, to prevent power loss

Trouble shootings:

1. My mobile phone can’t find any new Bluetooth device?

A. Make sure the Bluetooth speaker has entered pairing mode;

B. Ensure the speaker is within the effective working range;

2. Bluetooth devices can’t pair up

A. Make sure your mobile phone allows new connection , did not reach the maximum allowed connection number , please ref to your
