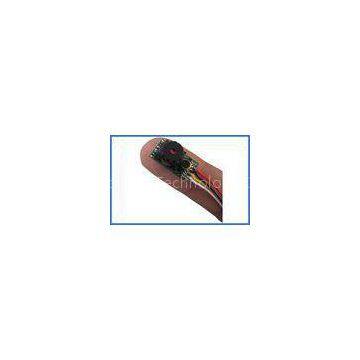

NTSC Pinhole CCTV Mini Night Vision Camera for Home Security 70mA
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
1 / 3 CMOS IR 5M Distance 520TVL CCTV Mini Camera For Farm , Stable , Kennel
-
High - Definition Dual Mode Indoor CCTV Mini Camera , Micro Security Camera
-
CCTV Mini Hidden Cameras Wireless , 520TVL Pixel Home Security Camera Systems
-
Shop / Firearm Wide View Angle CCTV Mini Camera Black , 8M IR Distance
-
CMOS Sensor 520TVL CCTV Mini Camera , Hidden Home Surveillance Cameras
-
Light Weight 90 Degree HD Video Micro CCTV Camera With Mini Lens
Product Details
| Brand Name | Zhibosen | Place of Origin | China | |
| Model Number | ZBS901A |
Product Description
Certification:CC,CE,FC,ROSH
NTSC Pinhole CCTV Mini Night Vision Camera for?Home Security 70mA
?
?
Quick Detail:
?
?
1. Model Number:?ZBS901A
2. Brand Name: ZHIBOSEN
3. Type: CCTV Mini camera
4.?Imaging device: 1/3 CMOS
5.?System format: PAL or NTSC
6. View angle: 90 degrees
6. Pixel: 520TVL
7. Place of Origin: Guangdong China
8. Gross Weight: 0.02kg
9. Package Size: 13x8x7cm
?
?
Description:
?
?
It’s?an ultra small? high definition CCTV camera with excellent night vision.Size is 9.5X18X9mm only, Weight is 2g! Very easy to install and conceal.Minimum illumination is 0.008lux, which can view clearly in?almost?complete darkness.Full TV system.
Applicable worldwide.
1. 520 TVL mini cctv camera?
2. 0.008lux for excellent night vision.?
3. Ultra small size.?
4. Can be used at FPV.?
5. Both NTSC/PAL.?
2. 0.008lux for excellent night vision.?
3. Ultra small size.?
4. Can be used at FPV.?
5. Both NTSC/PAL.?
Applications:?
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.?
?
Specifications :
??
?
|
PICK UP ELEMENT
|
Single chip 1/3 CMOS
|
|
|
SYSTEM
|
NTSC
|
PAL
|
|
NUMBER OF PIXEL
|
NTSC:656(H)×492(V)
|
PAL:786(H)×576(V)
|
|
IMAGE SIGNAL PROCESS
|
Digital Signal Processing System
|
|
|
SENSOR DIMENSION
|
4.75mm(H)×3.55mm(V)
|
|
|
HORIZONTAL RESOLUTION
|
Approximately 520TV Lines
|
|
|
SCANNING SYSTEM
|
2:1 Interlace
|
|
|
SENSITIVITY
|
0.008Lux/F1.2
|
|
|
LENS?&?VIEW?ANGLE
|
0.5mm F2.0 /55
|
|
|
S/N RATIO
|
52dB
|
|
|
ELECTRONIC SHUTTER
|
OUT (1/60 S TO 1/100000 S)
|
OUT (1/50 S TO 1/100000)S
|
|
AUTO GAIN CONTROL
|
OUT
|
|
|
WHITE BALANCE CONTROL
|
OUT
|
|
|
BACK LIGHT COMPENSATION
|
OUT
|
|
|
VIDEO ?OUT
|
1.0V p-p/75ohm
|
|
|
AUDIO ?OUT
|
1.0V p-p/1Kohm
|
|
|
SIZE ?(L x W x H)
|
9.5mm x 18mm x 9mm
|
|
|
WEIGHT
|
1g
|
|
|
WORK CURRENT
|
70mA
|
|
|
POWER REQUIREMENT
|
DC 3.3V-6V
|
|
|
OPERATING TEMPERATURE
|
- 10 C ~ +50C ,less than?90% RH
|
|
|
Connection
|
PIN1-Red DC5V ?PIN2-Black GND ?PIN3-Yellow VIDEO OUT ?PIN4-white AUDIO OUT
|
?
?
Competitive advantages:?
?
?
good price, reliable quality, guarantee of delivery,good services
