Home > Products > Wireless Mini Camera > Restaurant 90 Degree 480TVL 5.8ghz Wireless Mini Camera 100 Meters Distance

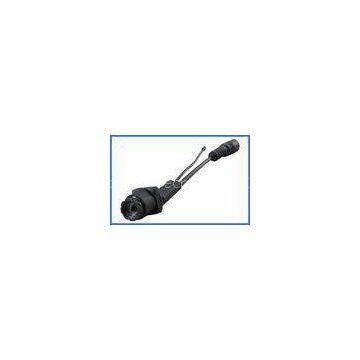

Restaurant 90 Degree 480TVL 5.8ghz Wireless Mini Camera 100 Meters Distance
- T/T L/C D/P D/A
- 7 days
You May Like
-
DC4V Indoor Surveillance Mini 5.8ghz Wireless Camera for Pub / Warehouse
-
Portable Low Illumination 16CH Wireless Mini Camera System , NTSC 720 ( H) x 480 (V)
-
Durable 100 Meters Wireless Mini Home Security Camera PAL 720 (H) 576 (V)
-
13.8mm Door Peephole 480TVL CCTV Mini Camera 1 / 4 CMOS Image Sensor
-
High Definition 8 Degree Mini CCTV Camera for Nursery / Child Care Security
-
15 Degree Concealed CCTV Mini Camera DC 3.3V - 24V , Residential Security Cameras
Product Details
| Brand Name | Zhibosen | Place of Origin | China | |
| Model Number | ZBS60A |
Product Description
Certification:CC,CE,FC,ROSH
Restaurant 90 degree 480TVL 5.8ghz Wireless Mini Camera 100 Meters Distance
Quick Detail:
1. Model Number:?ZBS60A
2. Brand Name: ZHIBOSEN
3. Type:?Wireless Mini Camera
5.?System format: PAL or NTSC
6. View angle: 90 degrees
6. Pixel: 480TVL
7. Place of Origin: Guangdong China
8. Gross Weight: 0.5kg
9. Package Size: 13x8x7cm
Description:
Frequency:?CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
Pixel: 480TVL
View angle: ?90° or 50° ?for your choice
Minimum illumination: 0.008 (Lux)?/ F1.2
Resolution:?PAL:720 X 576 ? NTSC:720 X 480
SNR: ≥48 (db)
Backlight compensation: Auto
Voltage:?DC 4V
Working temperature: -20 ~ 50 (℃)
Gross Weight: 0.5kg
Package Size: 13x8x7cm
Applications:?
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.?
Specifications :
| Working frequency | G1-within 5.8G | CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. | Working Channel: 1 of 24 |
| CH5: 5785MHz; CH6: 5765MHz;?CH7: 5745MHz; CH8: 5725MHz | |||
| G2-Beyond 5.8G | CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. | ||
| CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz | |||
| G3-Within 5.8G | CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. | ||
| CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz | |||
| Antenna | External antenna | ||
| RF OUTPUT POWER | 25mW | ||
| TRANSMISSION RANGE | 100 meters | ||
| SENSOR DIMENSION | NTSC:720(H)×480(V) | PAL:720(H)×576(V) | |
| HORIZONTAL RESOLUTION | 480TV Lines | ||
| SENSITIVITY | 0.008Lux/F1.2 | ||
| LENS?&?VIEW?ANGLE | 0.5mm F1.2 / 90 °(TE60A)?0.5mm F1.2 / 50 °(TE60B) | ||
| SIZE(L x W x H) | 39.5mm x 10.5mm x 10.5mm(TE60A)?33.0mm x 10.0mm x 10.0mm(TE60B) | ||
| WEIGHT(g) | 20g | ||
| WORK CURRENT | 230mA | ||
| POWER REQUIREMENT | DC 4V | ||
| OPERATING TEMPERATURE | - 20°C ~ + 50°C?,Relative humidity 85/100 |
Competitive advantages:
good price, reliable quality, guarantee of delivery,good services
