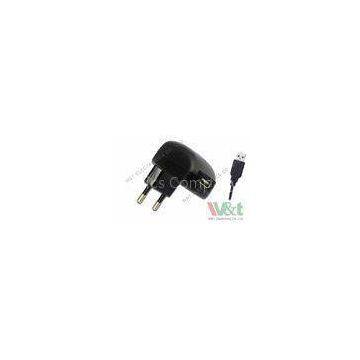

Class 2 UL / CE / PSE AC DC USB Charger For Tester Machine 86V - 265V , 5W Rated Power
- T/T L/C D/P D/A
- 7 days
You May Like
-
Iphone / Mobile Phone AC DC USB Charger Connector 86V - 265VAC , Universal Usb Travel Charger
-
6V 900MA / 5V 1A Micro Retractable PLug AC DC USB Charger For Digital Camera
-
5V 1A Mini Communication Terminal Equipment AC DC USB Charger For Intercom / Phone Charger
-
220v Argentina Plug AC DC USB Wall Plug Charger For Electric Torch / Flashlight
-
4W 4.2V UK AC DC Universal Usb Phone Charger With EN / IEC 60335 Standard
-
Wall Mounted Tablet PC Universal Travel Adapter With Usb Charger 100 240v , 50 / 60Hz
Product Details
| Brand Name | W&T | Place of Origin | China | |
| Model Number | W&T-AD05W-A |
Product Description
Certification:PSE UL CE GS EK FCC CB BS
Class II UL / CE / PSE AC DC USB Charger For Tester Machine 86V - 265V , 5W Rated Power
Quick Detail:
05W W&T USB Series, AC/DC Charger, Input voltage: 100V-240V AC, 50/60Hz Range voltage: 86V-265V AC, 47-63Hz Output power: 1~5W Output voltage: DC 3.00V ~ 24.0V Output current range: 200MA~1200MA Output voltage Ripple & Noise: Output voltage 2% MAX Efficiency: 65% MIX M.T.B.F: 50000H Plug in: UK ,US, EU, AUS, JP and KC,CCC plug?
High efficiency power, High Reliability (Ultra low no-load /standby power consumption)
Ultrasonic Lamination
Natural Cooling
Meets \"ENERGY STAR\" program requirement
Over voltage protection
Over load & short circuit protection
100% full load burn-in test
Energy Efficiency: Efficiency level V
Meet CEC, Reach?and MEPS standard
Rohs compliant
Safety:
PSE UL CUL CE GS?KC FCC TUV ?CB BS CCC
?
Application:
It’s?suitable?for?an?extremely?wide?range?of?applications,?including:
?? mobile phone, GPS, interphone, walkie talkie, intercom
??Li-lon/ Ni-mh/ Ni-hydrogen/ Lead-acid battery
??Bluetooth speaker
??electric torch, flashlight
??MP3,MP4,MP5,
??Digital camera
??Electric toy and portable medical products charge
??Electric tools and consumer electronics products charge
??Electric cars and communication terminal equipment product charge
??Consumption electronic products
??Tester machine and industrial machine
??Toy and lighting products
??Digital product and radio device
??Medical and exercise device or equipment
Specification:?
|
INPUT |
Voltage |
90-264VAC universal full range |
|||||||
|
Frequency |
47-63Hz |
||||||||
|
Current |
＜0.5A@100V AC input, full load condition |
||||||||
|
Inrush Current |
＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient |
||||||||
|
Leakage Current |
＜0.5A@ 264V AC input |
||||||||
|
OUTPUT |
PART NO. |
CH05WAX03 |
CH05WAX42 |
CH05WAX05 |
CH05WAX07 |
CH05WAX9 |
|||
|
Voltage |
3V |
4.2V |
5V |
7V |
9V |
||||
|
Max Load |
0-1.2A |
0-1.0A |
0-1.0A |
0-0.8A |
0-0.6A |
||||
|
Output Tolerance |
±5% |
±5% |
±5% |
±5% |
±5% |
||||
|
Ripple Noise(MAX) |
50mV |
50mV |
50mV |
70mV |
90mV |
||||
|
Efficiency(MIN) |
≥65% |
≥65% |
≥65% |
≥65% |
≥75% |
||||
