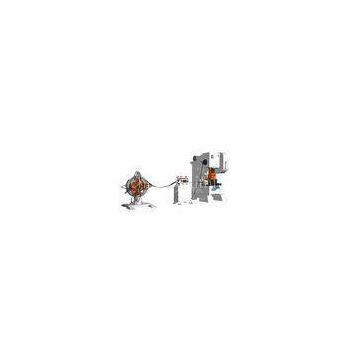

C Type High Speed Precision Mechanical Press Machine With Automatic Oil Lubrication
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Speed H Type Mechanical Press Machines With Auto CAD For Middle Steel Plate
-
C Frame High Speed Mechanical Power Press Machine / Equipment Hydraulic Slide
-
Double Row Feeding Automatic Multi Position Precision Power Press Machine For Deep Drawing
-
Welded Frame Mechanical Automatical Press Stamping / Punching Machine For Sheet Metal
-
Automatic Multi-Position Precision Stamping Press Machine, Transfer Presses
-
Traverse Crank C Type Punch Press Machine With Fixed Table, Dry Pneumatic Friction Clutch
Product Details
| Brand Name | SINOMI, XUDUAN | Place of Origin | China | |
| Model Number | VH |
Product Description
Certification:ISO9001:2000, CE
C Type High Speed Precision Mechanical Press Machine With Automatic Oil Lubrication???
Features:????? ??
* High rigidity alloy frame dealing with thermal aging, which means anti-vibration and minimum distortion?? ??? ??? ??? ? * Infinite variable speed, touch screen human-machine interface, easy operation?? ??? ??? ??? ??? ??? ??? ??? ?
* Imported PLC controller, high reliability?? ??? ??? ??? ??? ??? ??? ??? ?
* Low inertia clutch and brake which means engaging smoothly and braking rapidly?? ??? ??? ??? ??? ??? ??? ??? ?
* Automatic oil lubrication?? ??? ??? ??? ??? ??? ??? ??? ?
* Rolling bearings for crank and pitman?? ??? ??? ??? ??? ??? ??? ??? ?
* Super long guided gib and air sac balancer.?? ??? ??? ??? ??? ??? ??? ????
??? ? ??? ??? ???
With the designation of 3D CAD, finite element force analysis and mode analysis, VH series C type high-speed precision power presses have achieved the top class of presses in the world. The presses will especially meet the requirement of hardware, electron, EI accessories, communication device, home appliance and micro motor production. With auto feeder, the presses will realize high efficiency and precision production.?? ??? ??? ??? ??? ??? ??? ??? ?
?
Specification:
| Item | Unit | VH-16 | VH-25 | VH-45 | VH-65 | |||||||
|
?Nominal? Pressure |
kN | 160 | 250 | 450 | 650 | |||||||
|
Nominal ?Pressure? Stroke |
mm | 1.2 | 1.6 | 1.6 | 2 | |||||||
| Stroke?Length | mm | 10 | 20 | 30 | 10 | 20 | 30 | 10 | 20 | 30 | 20 | 30 |
|
No.of Strokes ?per?minute |
?SPM | 150-650 | 150-600 | 150-550 |
150 -600 |
150 -550 |
150 -500 |
150 -550 |
150 -500 |
15 -450 |
150 -400 |
150 -350 |
|
Max.?Die? Height |
mm | 210 | 205 | 200 | 220 | 215 | 210 | 265 | 260 | 255 | 325 | 320 |
|
Die?Height? Ajustment |
mm | 50 | 50 | 50 | 50 | |||||||
|
Throat? Depth |
mm | 150 | 155 | 235 | 270 | |||||||
|
Working?Table? Surface? Size |
F.B. | mm | 290 | 300 | 450 | 520 | ||||||
| L.R. | mm | 480 | 500 | 740 | 850 | |||||||
|
Hole?Size?of? Working? Table |
F.B. | mm | 80 | 82 | 120 | 130 | ||||||
| L.R. |
