Roof Panel Roll Forming Machine / Curving Machinery for Colored Steel Plate
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Metal Roof Panel Sheet Bending Machine Glazed Tile Roll Forming Equipment 5 - 15 m/minute
-
Professional Waterproof Roofing Panel Ridge Cap Roll Forming Machine for House Building
-
High Speed Cold Roll Forming Machine for Steel Roof Panel with Embossment
-
Industrial Warehouse Wall Panel Roll Forming Machine , Steel Facade Panel Forming Line
-
Cold Double Layer Floor Deck Roll Forming Machine 5 - 15m/minute High Speed
-
Galvanized Steel Plate Floor Deck Roll Forming Machine , Deck Floor Covering Forming Equipment
Product Details
| Brand Name | Guangcai | Place of Origin | China | |
| Model Number | GWC Curving machine |
Product Description
Certification:CE

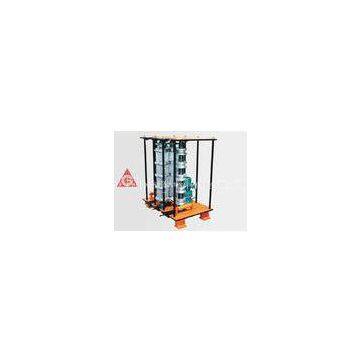

Roof Panel Roll Forming Machine / Curving Machinery for Colored Steel Plate
Quick Detail:
Composition
This panel curving machine consists of several parts, as listed below.
?
1. curving parts
2. PLC control cabinet
3. motors
Working process:
Feed straight roll formed panel → curve→ run out
Description:
After straight roof panels are made by a roof panel roll forming machine, they should be manually delivered to this roof panel curving machine to be processed into curved panels.
Our product is three-roller type which can be operated manually or automatically, and it offers stable performance to form curved panels with smooth curvature. In addition, this roof panel curving machine could be tailored to best meet every customer\'s requirements.
Applications:
workshop warehouse hangar gymnasium theatre exhibition hall engine house industrial buiding civilian buidingSpecifications
| Model | GWC Curving machine | Note |
| Applicable material | Color plate, galvanized sheet, galvalume plate and aluminum sheet | This machine is customizable upon each customer\'s requirements and the characteristics of processed material. |
| Feeding width | 1000mm/1200mm | |
| Processing thickness | 0.4-0.8mm | |
| Roller material | 45# steel coated with hard chrome | |
| Main motor power / hydraulic station power | 3kW x 3 | These parameters can be set according to the required production capacity. |
| Forming passes | ? | |
| Forming speed | 5-15m/minute | |
| Machine dimensions | 1.5×1.3×1.2m | |
| Machine weight | 1T | |
| ? |
