Plastic Injection Hot Runner Mould Parts For Automobile

Quick Detail:

1. The part name: Automobile Parts (plastic injection mold) ?

2. Plastic material: ABS+PC

3. Cavity material: H13 HRC48-52

4. Mold life: 1000k shots or according to customers quantity condition to decide it with saving cost for our customers.

5. Gate type: hot runner to BANANA gate according to our customers requires.

6.?Mold base standard: LKM Local standard, DME or HASCO,Customize according to customers\' requirements

7.?Standard of mold accessories: LKM, DME, HASCO, MISUMI, Meusburger, CUMSA, Progressive, INCORE, HRS, Husky, YUDO, PETS, MOLD-MASTER, MERKLE, Parker, HPS, LKM, EUCHNER, RJG, cilpres, NITTO, CRACK, ASSAB, GSW DIN standard, BOHLER, AISI standard, DAIDO JIS standard, PUNCH etc according to our customers requires

Applications:

Molding the plastic product by plastic injection machine

Description:

Part Material: ABS+PC

Locating ring Dimension: Ф3.99\",

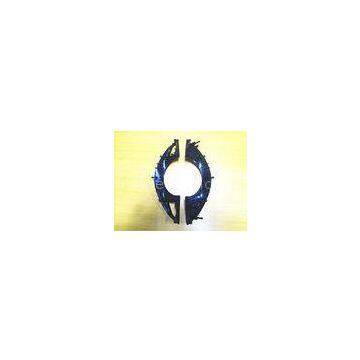

The part name: Automobile Parts

Mold type: plastic injection mold

KO Pattern: 7”x7”,

Sprue Radius: SR 1/2\"

Ejection type: ejection pin.

Mold construction description: hot runner system, 2 plates, there are 4 sliders and 12 lifters in core side and there are 2 larger sliders in the core side, there are 12 small sliders in each of the large sliders, many inserts and shut off area.

This part has very high appearance requirements, the defect showed below will not be acceptable, for example, weld line, Dark Sport,Sliver Marks,Gas Trap Effect,Visible Ejector Marks,Deformation,Short shot Filling,Burnt Streaks,Sink Marks,Flash,Over dimension,Under dimension,Stress Crack etc. Moreover, the product finishing surface must meet the requires more than SPI-SPE A-2.

This mould is made in Shiny Mould Factory. It is a mould exported to USA, with complicated structures and high quality requests. Customer needs mold life to be over 1 million shots. We can ensure this mold life and give warrant to our customer that once some mould components are broken during working, if it is caused not by the operation fault from the workers, we can provide new mould components to them free of charge.

Because using Hot Runner system, the mold will have the key advantages showed below:

1. Elimination of the Runner

2. Cycle Time Reduction/Lower Processing Costs

3. Improved Molding System Efficiency

4. Optimal Part Quality

5. Molding Automation

6. Design Flexibility, where flexibility in gate location can help optimize cavity orientation, cooling and mold simplification.

7. Balanced Melt Flow

Specifications:
