Home > Products > COB LED Array > Fresnel Emitting Source LED Light Array COB Modules 400W 3200K / 5600K

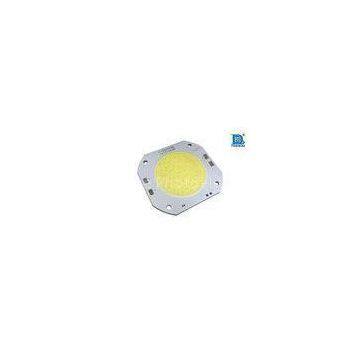

Fresnel Emitting Source LED Light Array COB Modules 400W 3200K / 5600K
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
150 Watt COB LED Array with Double Channels White / Warm White for Studio Lighting
-
Double CCT 150W Epistar COB LED Array 3000 - 3300K for Studio Lighting , Chip LED Bridgelux
-
Tri - Color 120W COB High CRI LED Array For Broadcast Lighting , Chip On Board LED
-
1000 - 1300LM Tri - Channels 60W COB LED Array with White / Yellow / Warm White
-
Long Lifespan Full Spectrum 5600K COB LED Array With CIR 95Ra 250Watt
-
High Bright 40 W RGB LED Array for Stage Lighting , Green 550 - 600lm
Product Details
| Brand Name | TYANSHINE | Place of Origin | China | |
| Model Number | TX-7076W400D180CUY-C01H95 |
Product Description
Certification:ISO9001:2008 SGS RoHS
?Fresnel Emitting Source LED Light Array COB Modules 400W 3200K / 5600K
Features:
High CRI, better performance, 95Ra?Warm white?3200K, 90Ra?Daylight?5600K High power/high efficiency package Full spectrum White Color-mixing by RGBY Integraged packages, low luminous decay and long lifespan 3mm Copper MCPCB, fast heat-conductivity Easy installation, cost-savingSpecifications:
| Code | Color | Vf (V) | If (A) | CCT(K) | φv(lm) | Power | LES(mm) | CRI (Ra) |
| TX-7076W400D180CUY-C01H95 | WarmWhite | 42-48 | 6.5-8.5 | 3200±200K | 20000-28000 | 400 | Φ52 | ≥97 |
| TX-7076W400D180CUY-B01H90 | White | 42-48 | 6.5-8.5 | 5600±200K | 24000-32000 | 400 | ≥90 |
Package Dimension:
Applications:
Broadcast / Photography / TV / Film equipment luminaires
LED Fresnels light
Entertainment stage / studio lighting
Architectural lighting
(the image for reference only)
