8mm , 10mm Hydraulic Seamless Carbon Steel Tube / Pipe , E215 1.0212

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SHENGDINGYUAN		Place of Origin	China
Model Number	SDY-18

Product Description

Delivery Time:25 days after receiving the deposite
Certification:ISO 9000 TS 16949

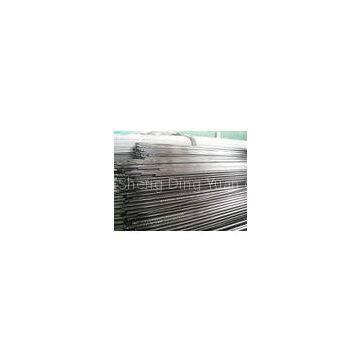

8mm , 10mm Hydraulic Seamless Carbon Steel Tube / Pipe , E215 1.0212

Specifications:

Size:OD:4mm-60mm,WT:0.5mm-7mm Standard:DIN2391/C,EN10305-4 Material:?ST37.4,ST44.4,ST52.4,E235,E355. Delivery?State:NBK+Black?phosphate. Length:5.8m,6m. Package:Bundles?or?wooden?cases. Surface?Anti-rust:Both?outside?and?internal?tube?surface?flushing?with?anti-rust?oil. Surface?quality:very?smooth?and?bright?without?oxide?scale,pock,strach,crack?and?other?defects. Surface?Cleaness:clean?without?iron?scrap,dust,better?for?hydraulic?system?life. Properties:better?extending?rate?and?strength?property,after?bending?with?no?deformation,after?flattening?and?flaring?process?with?no?crack. Raw?material:Bao?Steel,Huai?Steel,XingCheng?Steel?with?good?quality.

Quick Detail:

Cold drawn and NBK seamless steel tube is used as the tube to be phosphated.

Used in hydraulic system,nested card connector (pipe joints) with matching.

Description:

Synopsis of Process Routing: Cold drawn and bright NBK seamless steel tube is used as the tube to be phosphated. The phosphated is realized with the imported chemical fluid to form a black film. The antirust oil is absorbed by means of the micro pore on the film to prevent from the rust. The caps are covered at two ends of tube to prevent from the dust.

Main Features: color of steel tube: bright black. Color is homogeneously distributed on the tube surface. The tube has good property of antirust.

Main Application: used in hydraulic system, shippment industry,nested card connector (pipe joints) with matching.

Applications:

Used in hydraulic system,nested card connector (pipe joints) with matching,,automobile and in the occasion where the high precision,brightness,cleanness and mechanical properties of the tube are required

Tolerance Table Of Steel Tube

NAME	SCOPE(mm)	GB (mm)	DIN (mm)	Enterprise control(mm)	Special high-precision(mm)
OD Out Diameter	4-30	±0.1	±0.08	±0.05	±0.03
31-40	±0.15	±0.15	±0.05	±0.03
41-50	±0.20	±0.20	±0.08	±0.03
51-60	±0.25	±0.25	±0.08	±0.03
Wall thickness?	0.5-7	±10%,Min±0.12	±10%	±10%,Min±0.05	±10%,Min±0.03

Mechanical prorperties for hydraulic steel tubing

Mechanical properties at room temperature
Steel grade	Minimum values for the delivery conditiona,b
Steel name	Steel number	﹢CC	﹢LCC	﹢SR	﹢Ad	﹢N
Rm	A	Rm	A	Rm	ReH	A	Rm	A	Rm	ReH	A
