RS232 Tensile Testing Machines , Computer Servo Electrical Test Equipment
- T/T L/C D/P D/A
- 7 days
You May Like
-
Mechanical Tensile Testing Machine , Electronic Tensile Strength Test Equipment
-
High Standard Furniture Testing Machines / Chair Seating Cyclic Durability Tester
-
Electronic Environmental Test Chambers , Water Spray Salt Spray Test Machine
-
Programmable Water Proof Environmental Test Chambers With PLC Control system
-
Chair Back Cyclic Furniture Testing Machines , Electronic Chair Testing Machine
-
Non - Ferrous Paint Xenon Test Chamber With PID Self-Tuning Temperature Control Mode
Product Details
| Brand Name | HAIDA | Place of Origin | China | |
| Model Number | HD-604-s |
Product Description
Certification:ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
?
China Tensile Strength Tester , Tensile Testing Machines
Product Description
Computer Servo Electrical Test Equipment?is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

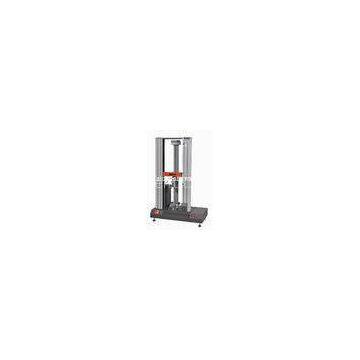

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
RS232?Tensile?Testing?Machines?,?Computer?Servo?Electrical?Test?Equipment
Main Technical Parameter
|
Items |
Specification |
|
Sensor |
Celtron load cell |
|
Capacity |
500, 1000, 2000KG |
|
Unit Switchover |
G, KG, N, LB |
|
Display Device |
PC |
|
Resolution |
1/250,000 |
|
Accuracy |
±0.5% |
|
Max. Stroke |
1000mm (excluding fixture) |
|
Test Speed |
0.1-500mm/min (adjustable ) |
|
Motor |
Panasonic Servo Motor |
|
Screw |
High Precise Ball Screw |
|
Elongation Accuracy |
0.001mm |
|
Power |
1∮, AC220V, 50HZ |
|
Weight |
Approx.200kg |
|
Accessories |
One set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual |
Product Features
1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
Pictures
